11.8.7 Block Diagram
P
r
e
s
c
a
l
e
r
fx
M
U
X
fx/2
T3CNT (8Bit)
EC3
fx/4
fx/8
fx/32
fx/128
fx/512
fx/2048
3
T3CK[2:0]
T3CN
8-bit Timer 3 Counter
T3DR (8Bit)
Comparator
T3IFR
To interrupt
block
T3O
8-bit Timer 3 Data Register
INT_ACK
Clear
Clear
Match
T3CAPR (8Bit)
Clear
EINT0
EIPOL0L[1:0]
FLAG0
(EIFLAG0.0)
INT_ACK
Clear
To interrupt
block
2
T3MS
T3ST
8-bit Timer 3 Capture Register
T4CNT (8Bit)
4
T4CK[3:0]
8-bit Timer 4 Counter
T4DR (8Bit)
Comparator
To interrupt
block
T4O
8-bit Timer 4 Data Register
Clear
Match
T4CAPR (8Bit)
Clear
EINT1
EIPOL0L[3:2]
FLAG0
(EIFLAG0.1)
INT_ACK
Clear
To interrupt
block
2
T4ST
8-bit Timer 4 Capture Register
P
r
e
s
c
a
l
e
r
fx
M
U
X
fx/1
fx/2
fx/4
fx/8
fx/16384
T4MS
T4CN
NOTE: Do not set to “1111b” in the T4CK[3:0], when two 8-bit timer 3/4 modes.

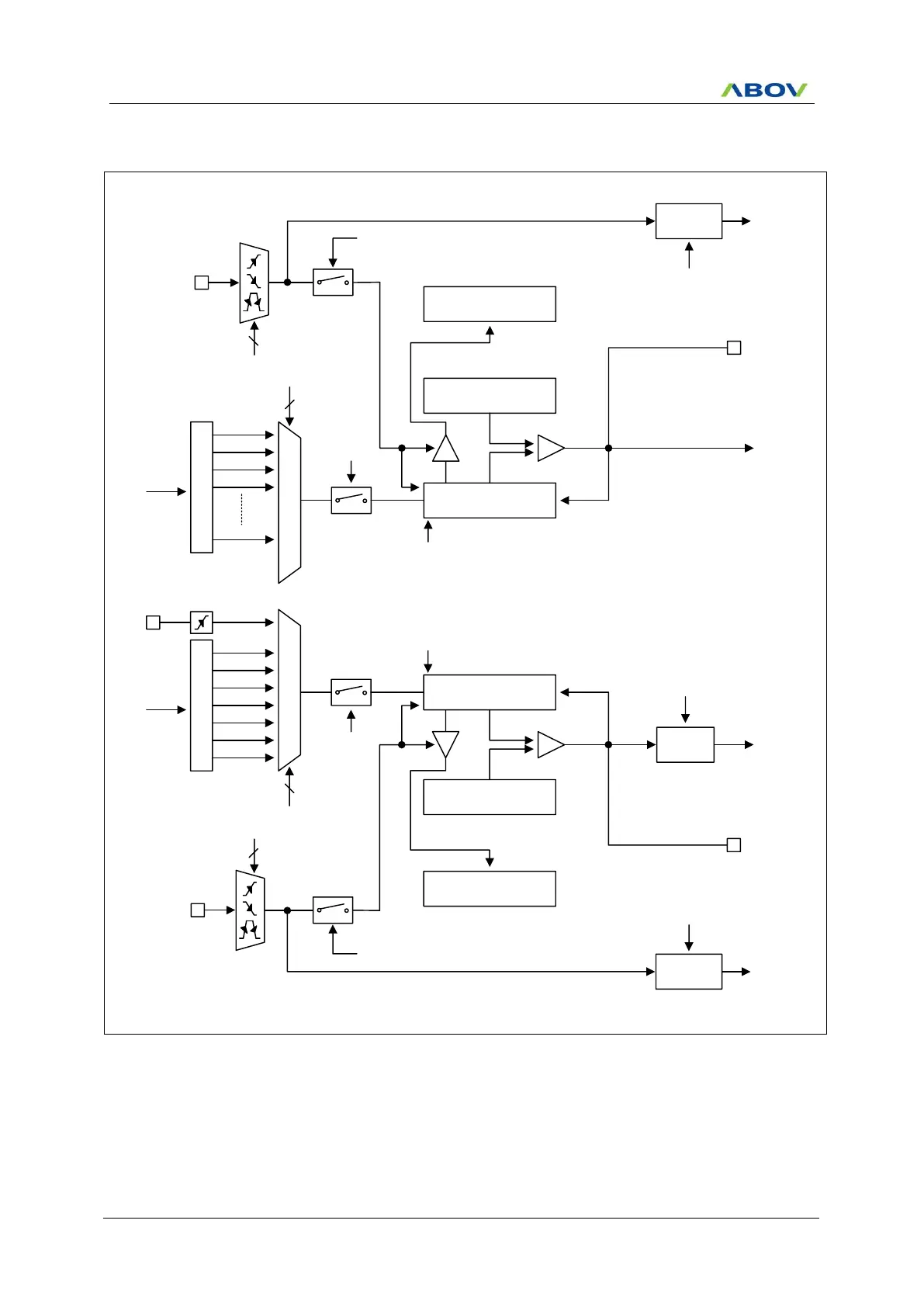

Figure 11.45 Two 8-Bit Timer 3, 4 Block Diagram
