User's Manual | ACOM 700S | 1.8-54 MHz Linear Amplifier
Page 72 of 92 | S e c t i o n MAINTENANCE
April 2024
• Re-connect to the amplifier by clicking on the Connect icon (two connected plugs) or use
Device -> Connect from the menu bar;

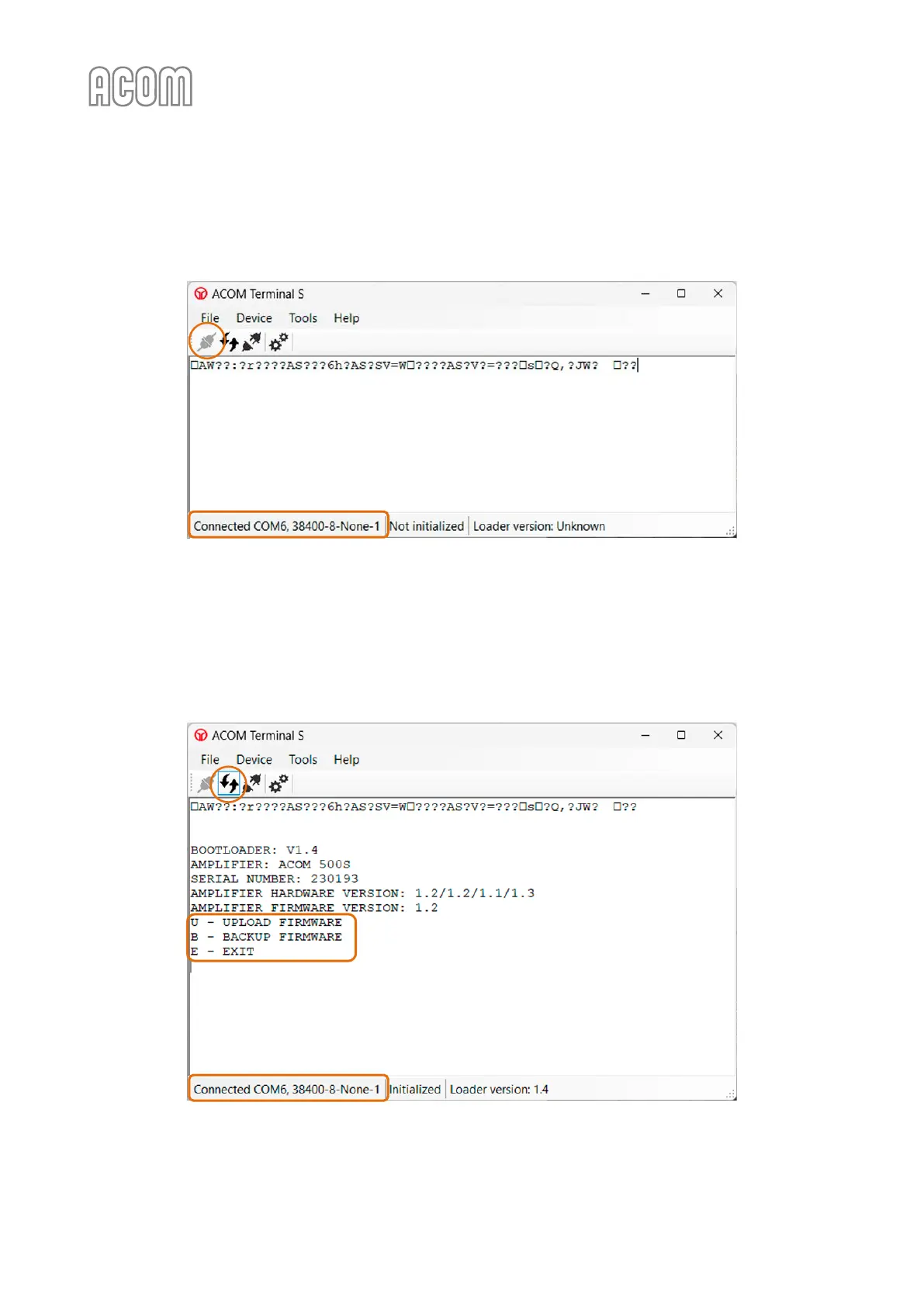

Figure 7-16 | Terminal S - Reconnect
Figure 7-16 | Terminal S - Reconnect
• When connected click on the Firmware Upload/Download icon (two arrows in opposite
directions) or use Device -> Firmware upload/download from the menu bar to activate the
bootloader. A Bootloader menu will appear in the text box as shown below;
Figure 7-17 | Terminal S - Bootloader menu
Figure 7-17 | Terminal S - Bootloader menu
