6146/6156 DC Voltage/Current Generators Operation Manual
4.2.3 Operations in Memory Recall Mode
4-7
Standby /
Suspend
Repeat
Scans the
data
repeatedly at
intervals
specified by
the step time.
Tp:
Step time
Td:
READY output
delay time
Tcn:
Operate pro-
cessing time
Trc:
Range change
processing time
Single
Scans the
data at
intervals
specified by
the step time.
Hold
Scans the
data one by
one by
trigger input.

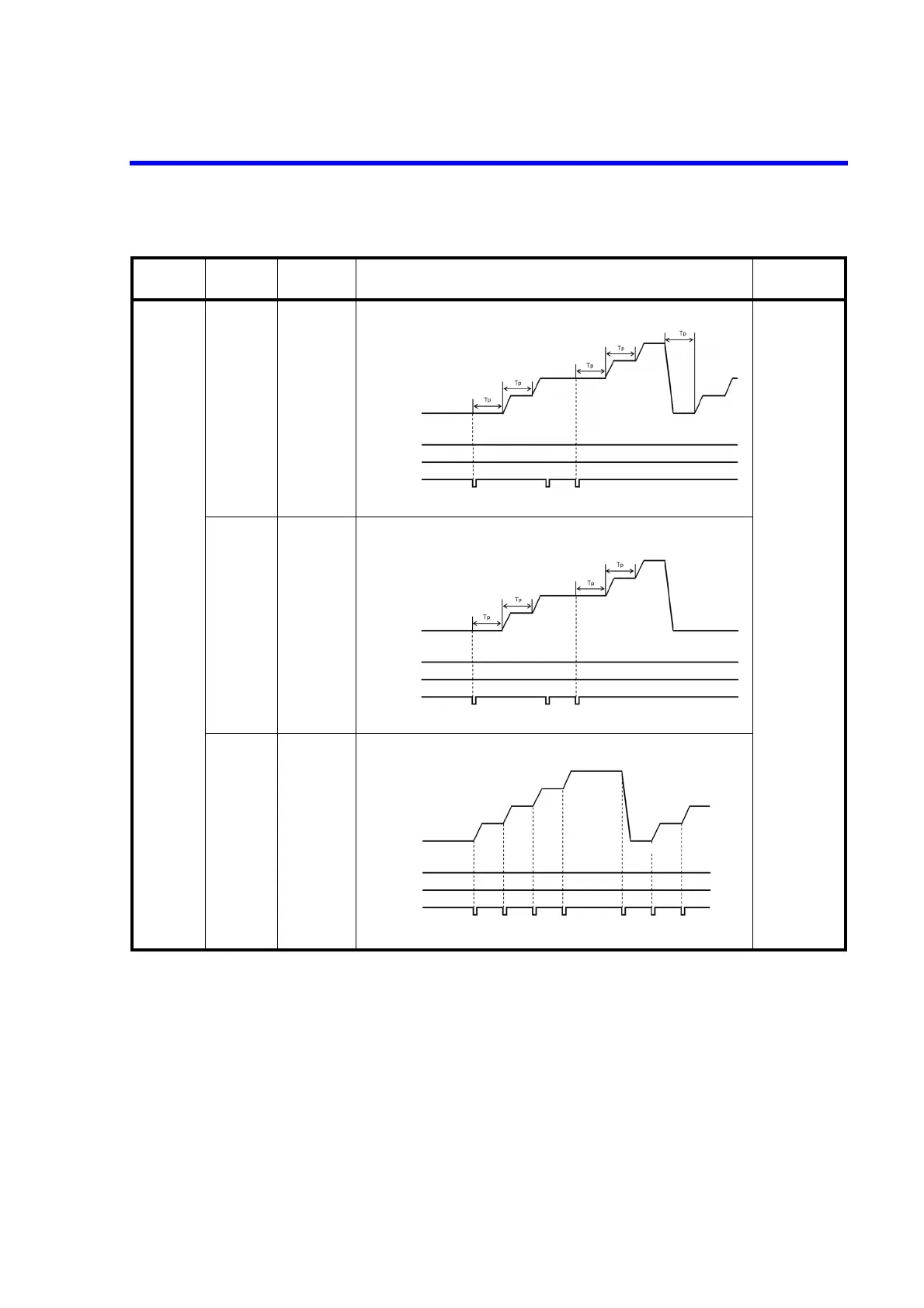

Table 4-4 Operations in Memory Recall Mode (2 of 3)
Operational
condition
Scan Mode Description Operation Remarks
TRIGGER IN
SYNC OUT
READY OUT
Start trigger Hold trigger Hold release trigger
Display
Stored value
of the first
number
Stored value
of the last
number
Stored value of the
first number
TRIGGER IN
SYNC OUT
READY OUT
Start trigger
Hold trigger
Hold release trigger
Display
Stored value of the
last number
Stored value of the
first number
Stored value
of the first
number
TRIGGER IN
SYNC OUT
READY OUT
Step trigger
Display
Stored value of the
last number
Stored value
of the first
number
Stored value
of the first
number
