ADJ WMX1 - Move FX

MOVE FX

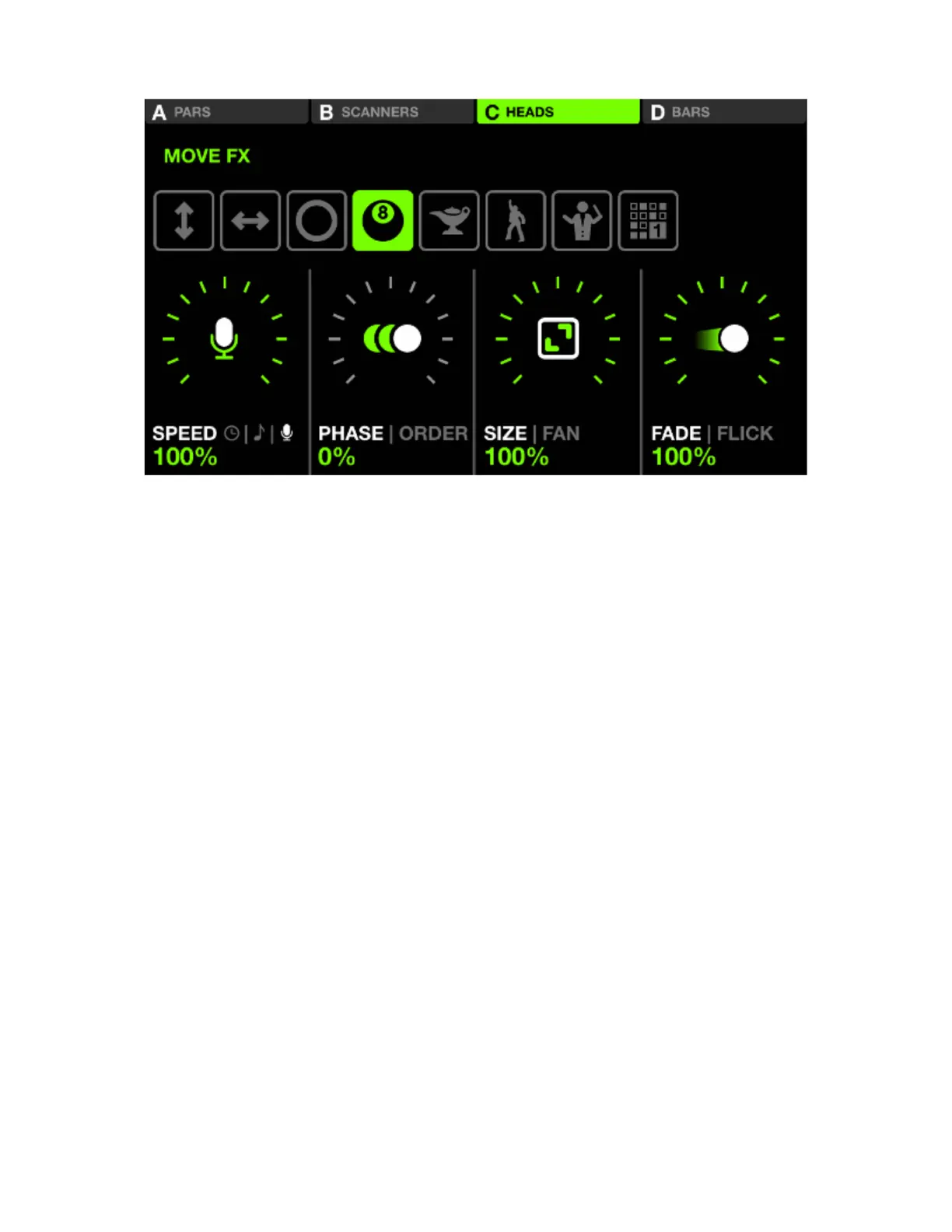

Displayed data:
• Four buttons along the top to indicate which groups have Move FX enabled. Shift + hit the BPM TAP
button to toggle between groups A-D and E-H.
• Eight buttons to select the Move Fx type.
• Speed, Phase, Order, Size, Fan, Fade and Flick FX properties.
Encoder actions:
• Move the rst encoder to control the FX speed. This is controlled either by a linear % or a BPM division
depending on the Sync mode. Pushing the encoder toggles between Clock, BPM, and Audio Pulse
(mic/line in) sync.
• Move the second encoder to adjust the Phase or Order. Pushing the encoder toggles between Phase
and Order mode. Phase is controlled as a %. Order will change the xture order consequently playing
the effect forwards, backwards, symmetrically inwards and symmetrically outwards.
• Move the third encoder to control the FX Size or Fan. Pushing the encoder toggles between Size and
Fan properties.
• Move the Fourth Encoder to control the FX Fade. Pushing the encoder enables Flick mode which
increases the fade time over 100% of the step time (the time between position points). This consequently
creates a ‘Flick’ effect as the fades are cancelled part-way through.
Other actions:
• Tapping the eight FX selection buttons changes the FX type and recalls associated properties.
• Tapping the four buttons at the top of the screen, or hitting one of the buttons on the top row of the
matrix turns the FX on and off for each group.
• Tapping one of the 16 light green buttons on the matrix adjusts the position of the entire effect to the
top left, top, top right, right, bottom right, bottom, bottom left, left and center.
• Tapping the ‘Edit’ button when a sequence effect type is selected opens the sequencer.
17
