ADJ WMX1 - Beam Engine Control Flow

BEAM ENGINE CONTROL FLOW

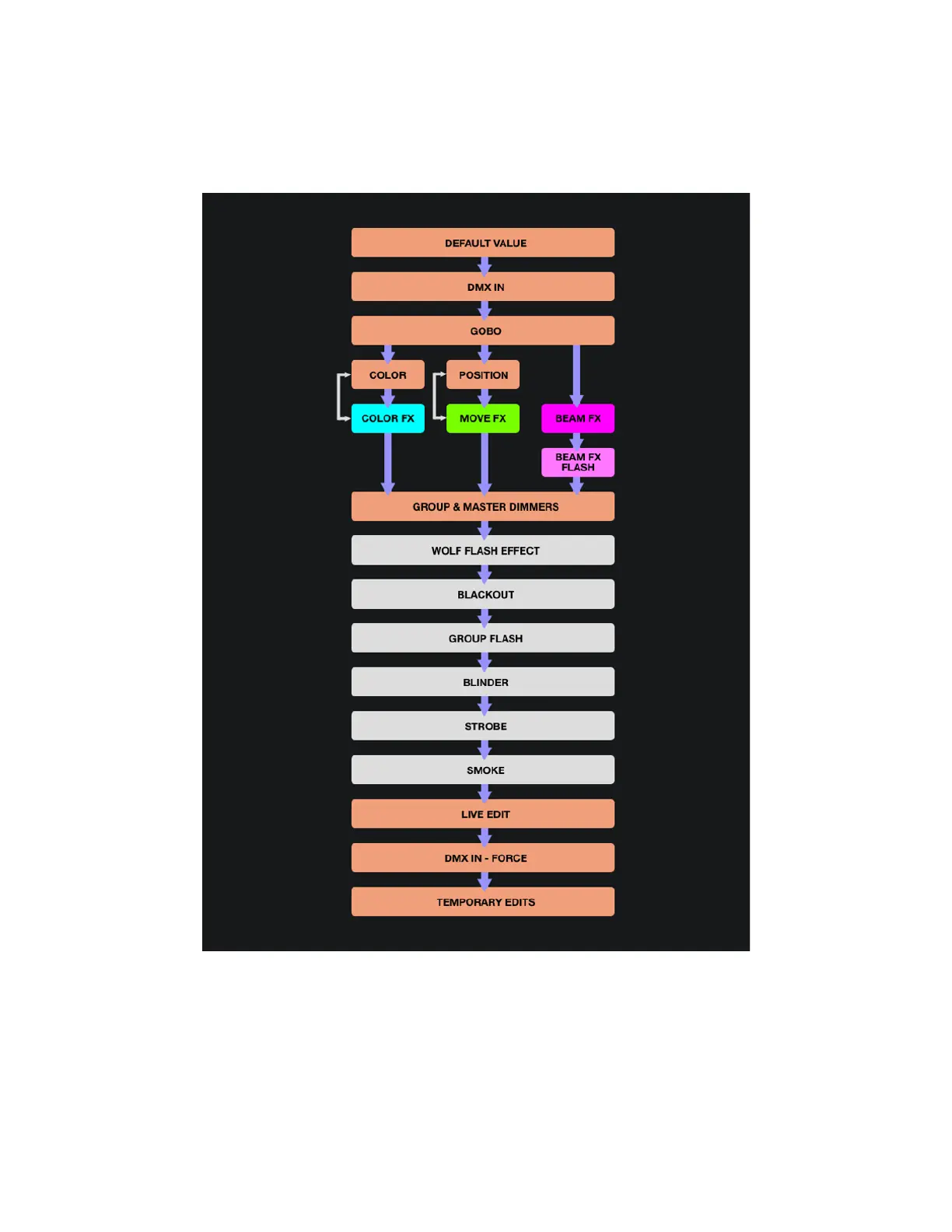

The diagram below explains how the Wolfmix controls DMX channels. The Beam Engine is triggered
every 40ms (25 fps). All DMX channels are set to their defualt values at the beginning of each frame, and
then each effect is added one-by-one.
