ADJ WMX1 - Static Position

STATIC POSITION

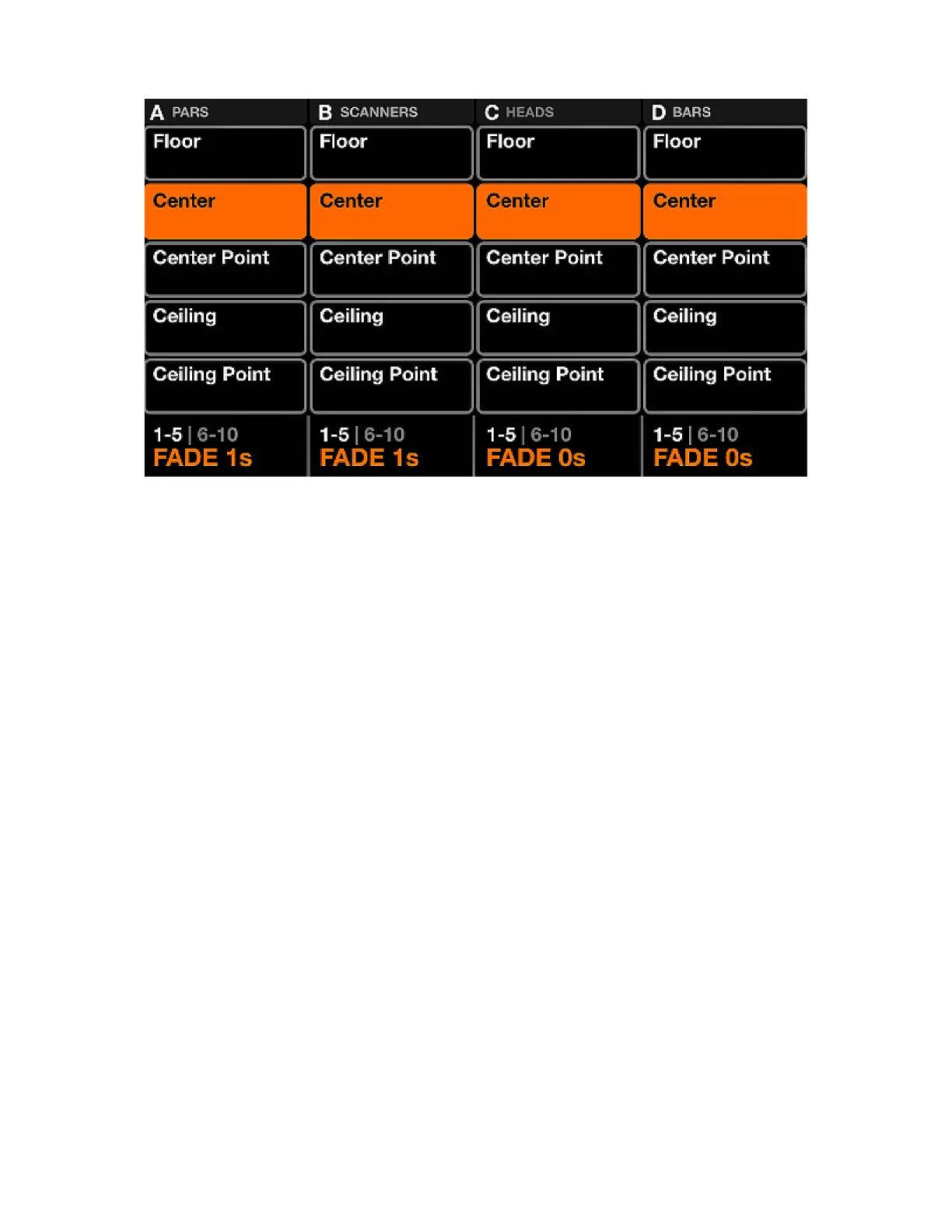

The static position screen contains a palette of ve positions per group. Selecting a position will override
any playing move effects on the group and set all xtures in the group to the selected position.
Displayed data:
• Four columns containing ve positions. Each column represents one group. Shift + hit the BPM TAP
button to toggle between groups A-D and E-H.
• Position bank (colors 1-5, and 6-10).
• Fade value of the selected position.
Encoder actions:
• Move the encoder to change the FADE value value of the selected position.
• Pushing the encoder toggles between positions 1-5 and 6-10.
Other actions:
• Tapping one of the position buttons triggers the position. If a move effect is playing on the group, the
selected position will override the effect.
• Shift + tapping one of the position buttons allows for the position to be changed. Note that as this is a
position palette, the new position will be applied to all presets.
23
