1.2 Parts List
Table 1-1 Parts List
Label
Quantity
Description
SDR-NMS
A
1
SDR Network Management System (NMS)
B
1
AC Power Cable
C
1
Ethernet Cable (Crossover)
D
1
NMS Power Cable
E
6
Anchor Bolt
F
1
Ground Cable
G
1
Documentation CD**
SDR-Modules
J
Up to 4*
Optional SDR Modules*
K
Up to 4*
Module Data Cable
SDR-CHC
L
1
SDR-CHC
M
6 or 8
RF Jumper Cables
N
1
50 Ohm Terminator (placed on Server Wifi port)
O
1
Chassis Mounting Kit

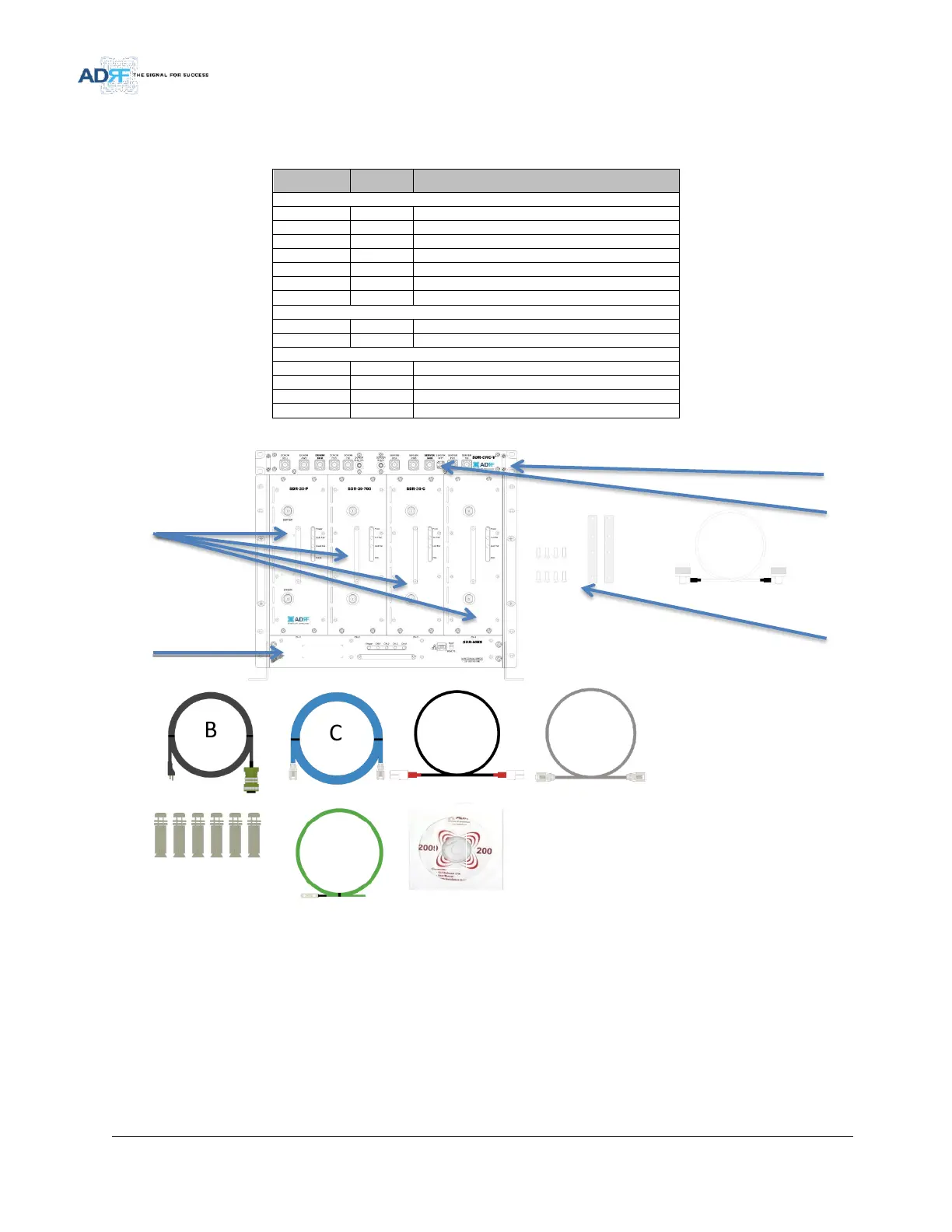

Figure 1 SDR Repeater Parts List
* At least 1 module must be present in order to use SDR
** CD includes: User Manual, Quick-Start Guide, and Troubleshooting Guide
A
B
C
L
J
K
M
N
O
G
F
D
E
SDR-33-AF
