2.1.5 NMS Power Port & Power Outlet for Channel Card
 NMS-PWN-IN (NMS power input)- The NRS-PWN-IN port is used to power the SDR-NMS. The 2-pin cable
connects to the any one of NMS-PWR-OUT ports on the SDR modules. The NMS power can be used to power
on/off the SDR-NMS.
 Power for RF Module- Connect the AC power cables to the SDR modules

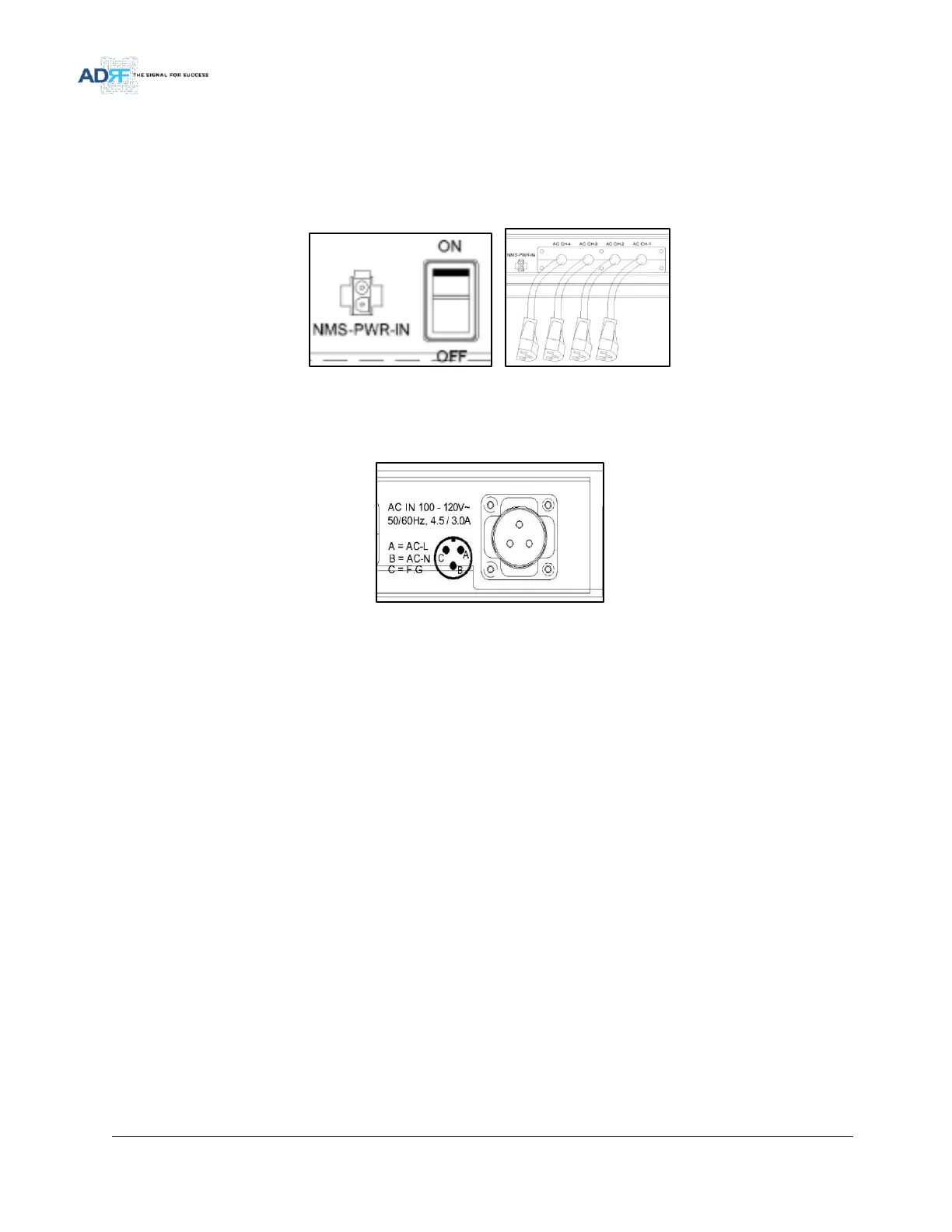

Figure 7 NMS Power Port & Power Outlet for Channel Card
2.1.6 Master AC outlet
Connect the Master AC In from the chassis to an AC Outlet.
Figure 8 Main AC Outlet
 The socket-outlet shall be installed near the equipment and shall be easily accessible.
 This power of this system shall be supplied through wiring installed in a normal building.
 If powered directly from the mains distribution system, it shall be used additional protection, such as
overvoltage protection device.
