Advanced RF Technologies, Inc.
5.4.4.3 Install- SNMP

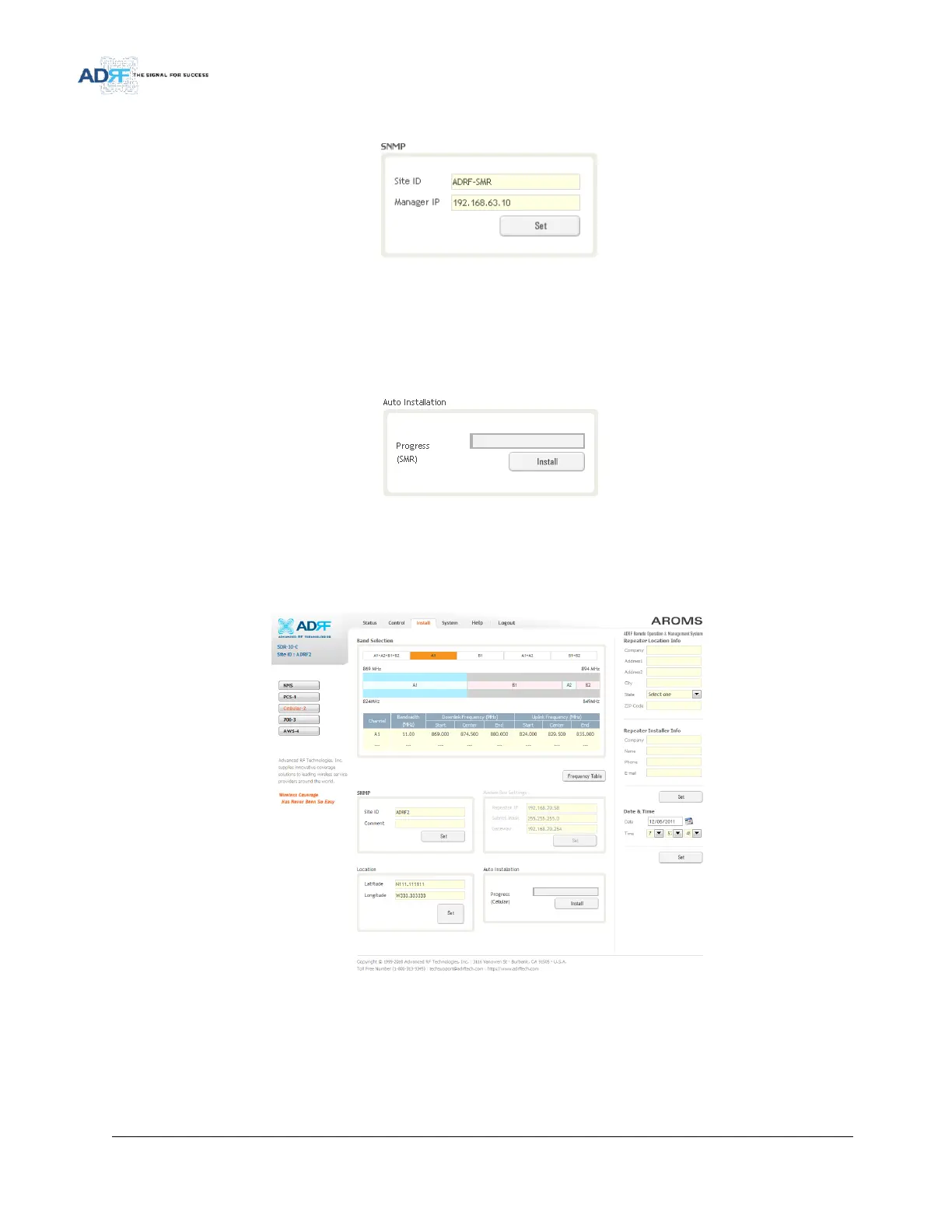

Figure 77 Install- SNMP
The SNMP section allows you to specify the Site ID and Manager IP. The Site-ID is the code that is used to
identify a particular module. The Manager IP field is where the user inputs the IP address of the NOC system that is
being used to monitor the SNMP traps.
5.4.4.4 Install- Auto Installation
Figure 78 Install- Auto Installation
The Auto Installation routine can be run by clicking on the Install button. The Auto Installation routine runs
basic system checks for propery functionaility.
5.4.5 Install- Cellular
Figure 79 Install - Cellular
The Cellular Install page allows the user specify the desired frequncies by clicking on the preset Cellular band.
Preset choices include A1+A2+B1+B2, A1, B1, A1+A2, and B1+B2.
