Advanced RF Technologies, Inc.
4.4 Line of Sight
The donor antenna which points towards the base station typically has a narrow beam antenna pattern. As a
result, a slight deviation away from the direction of the BTS can lead to less than optimum results. In addition,
obstacles between the repeater and the BTS may impair the repeater from obtaining any BTS signal. As a result, the
repeater cannot transmit signal to the coverage area. Therefore, a direct line of sight to the BTS for the donor
antenna is vital to the function of a repeater. For the same reason, placing the server antenna in direct line of sight
of the coverage area is also necessary.

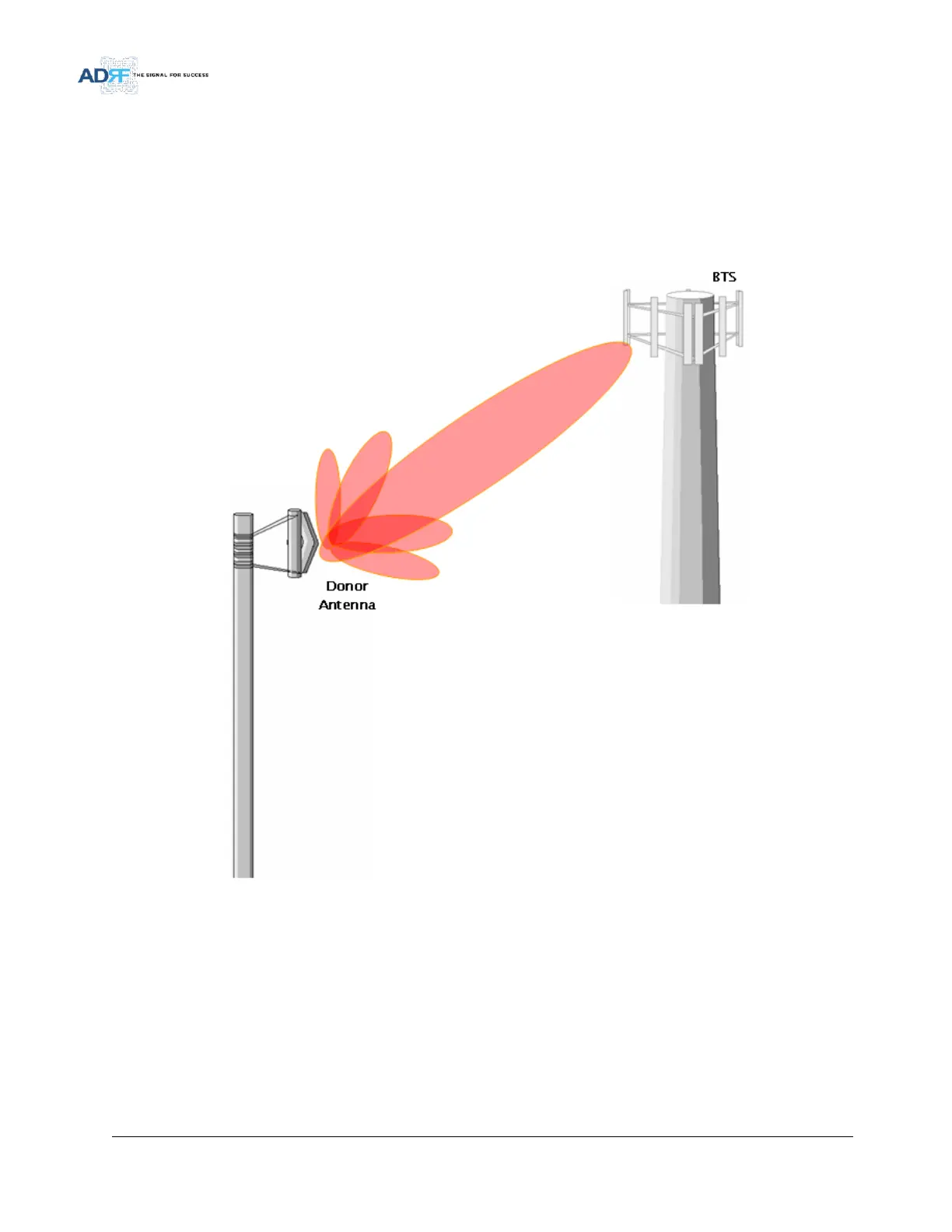

Figure 24 Direct Line of Sight to the BTS
