5.2.2.1 Band
This section displays the spectrum and technology that is being used. The band column displays the bandwidth
or band that has been selected. The downlink column displays the center frequency of the selected band. The uplink
column displays the center frequency of the selected band.

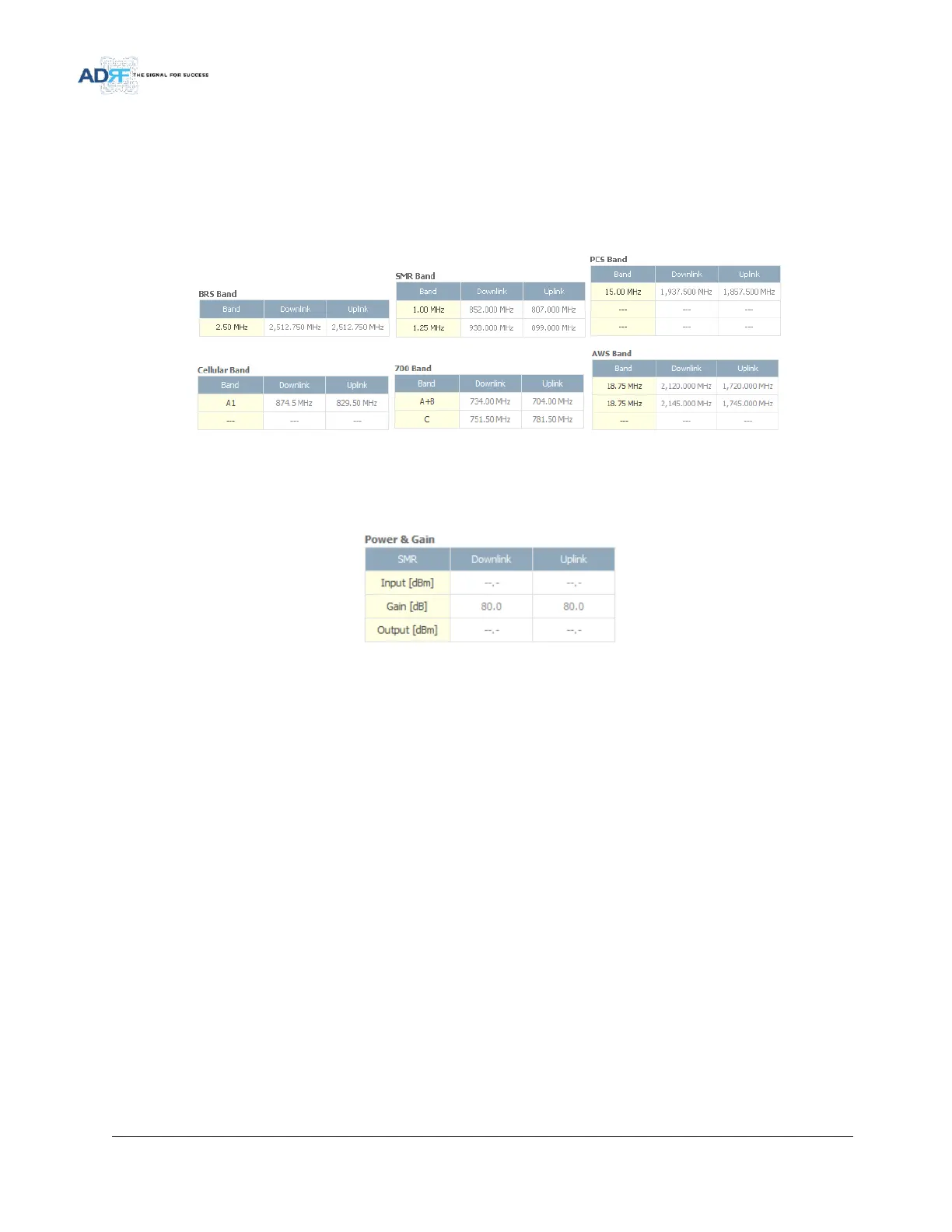

Figure 37 Band Display
5.2.2.2 Power & Gain
This section displays the Input, Gain, and Output for both downlink and uplink.
Figure 38 Power & Gain Display
Input [dBm] – Displays the incoming Downlink/Uplink signal level. The system will display “--.-“ when
the input level is < -90 dBm.
Gain [dB] – Displays the amount of gain that is currently be used.
Output [dB] – Diplays the Downlink/Uplink output power levels. The system will display “--.-“ when
the input level is < -10 dBm.
