Advanced RF Technologies, Inc.

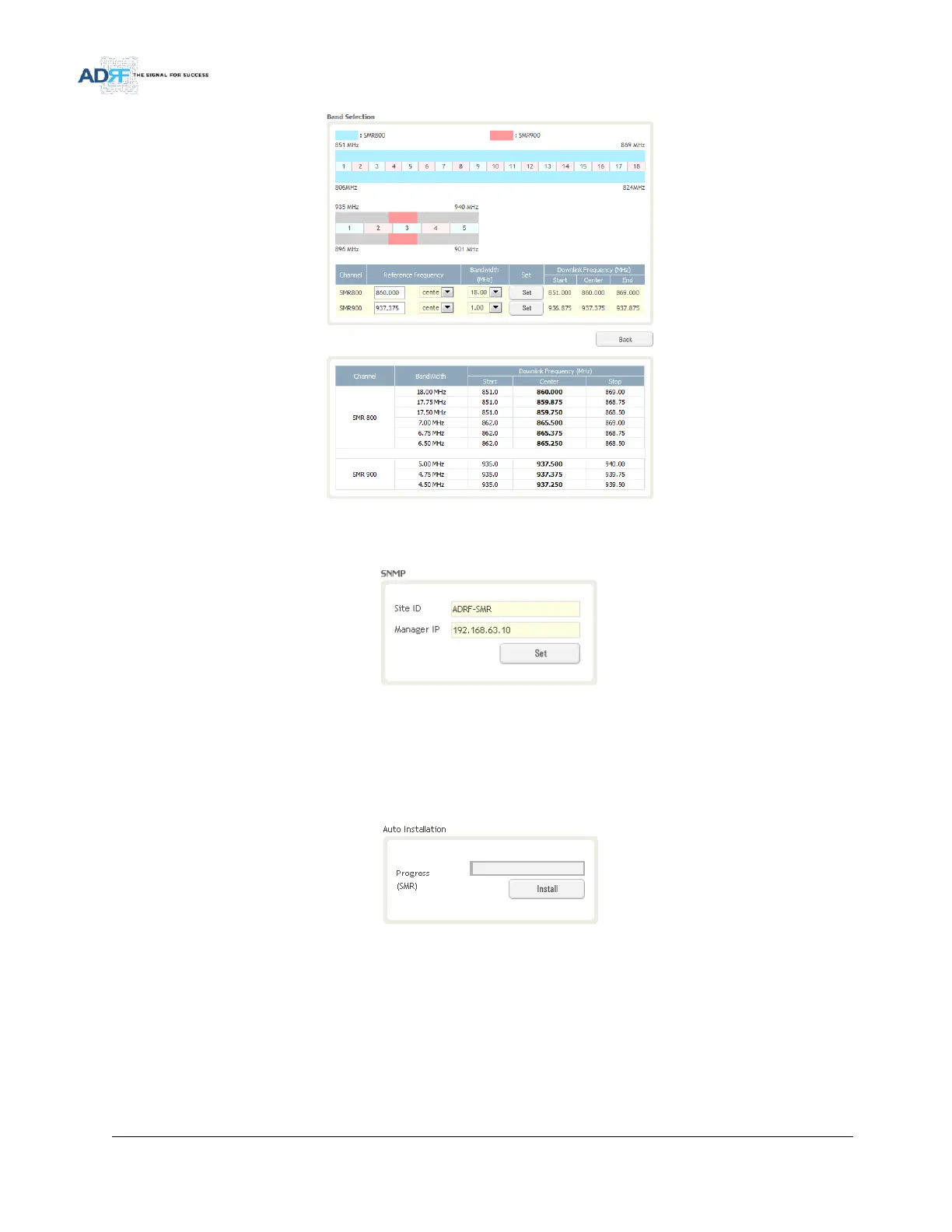

Figure 64 Install- Frequency Table
5.4.2.3 Install- SNMP
Figure 65 Install - SNMP
The SNMP section allows you to specify the Site ID and Manager IP. The Site-ID is the code that is used to
identify a particular module. The Manager IP field is where the user inputs the IP address of the NOC system that is
being used to monitor the SNMP traps.
5.4.2.4 Install- Auto Installation
Figure 66 Install – Auto Installation
The Auto Installation routine can be run by clicking on the Install button. The Auto Installation routine runs
basic system checks to ensure proper functionality.
