ADRF SDR - Module Control Configuration

Advanced RF Technologies, Inc.
44
5.3.2 Control- SMR, PCS, BRS, Cellular, 700, AWS

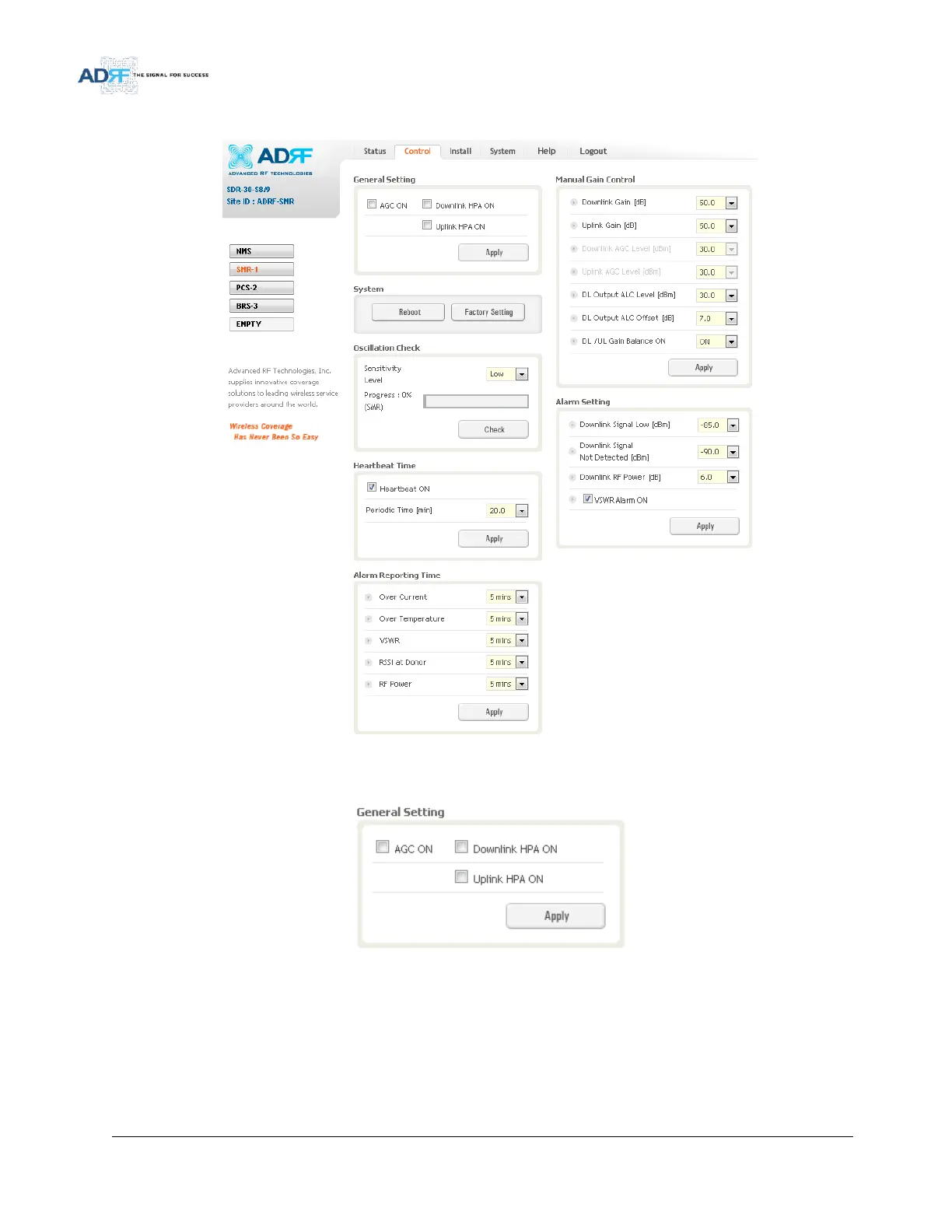

Figure 46 Control- SMR, PCS, BRS, Cellular, 700, AWS
5.3.2.1 General Setting
Figure 47 General Setting
 AGC ON: Enables or disables AGC (Automatic Gain Control)
 Downlink HPA ON: Enables or disables the DL HPA (High Power Amplifier)
 Uplink HPA ON: Enables or disabled the UL HPA (High Power Amplifier)
To enable any of the settings, click on the checkbox and click the Apply button.
