2.1.3 DC Power Port & Debug Port.
 DC Power Port- The DC Power Port can be used to provide power to the optional External Modem Box (ADRF
OmniBox, SymBox)
 Debug Port- The debug port is used for ADRF testing purposes only.

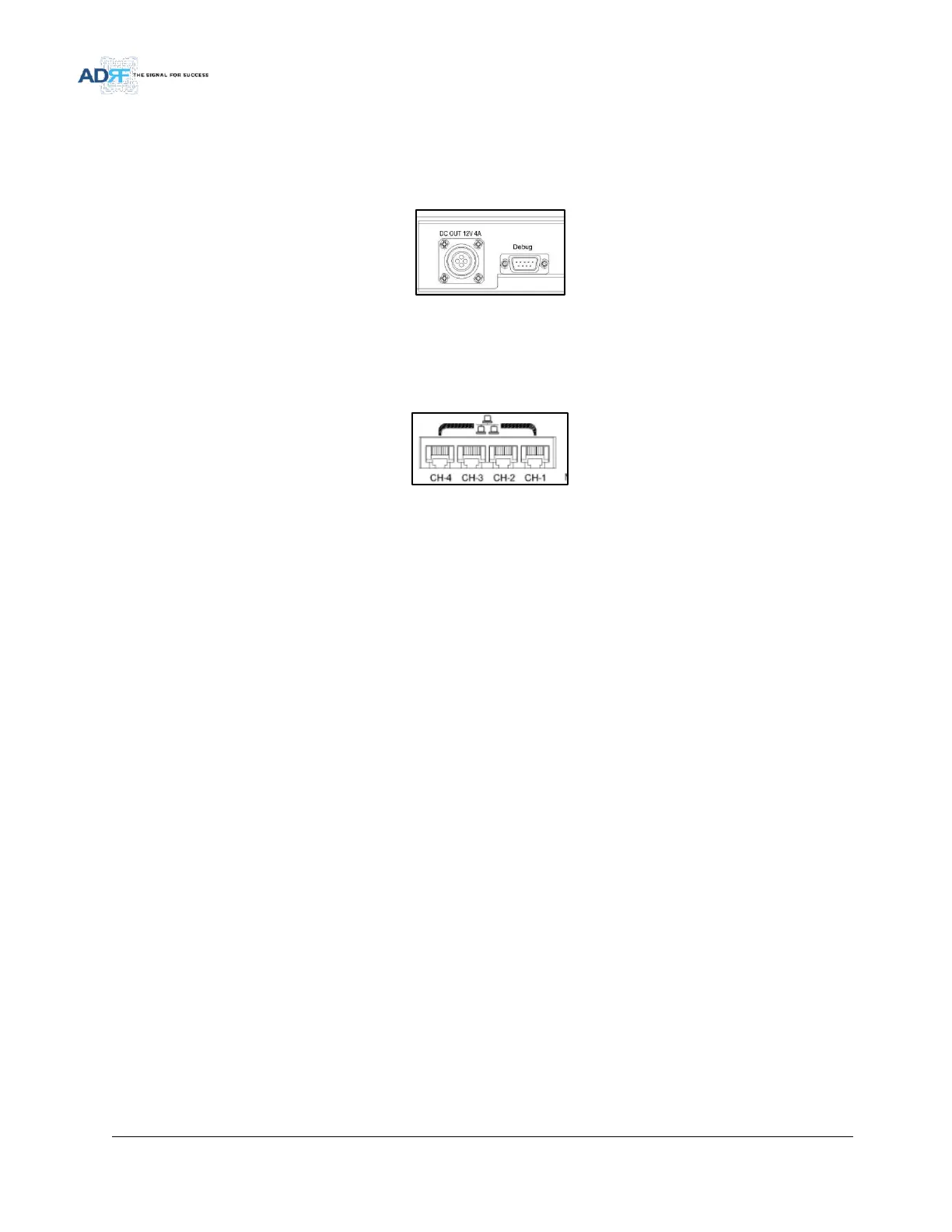

Figure 5 Debug Port
2.1.4 Communication Port & NMS Power Port
 Communication Port- These RJ-45 ports are used to connect the SDR-NMS to the SDR modules using the
included RJ-45 cables.
Figure 6 Communication Port
Note: Each module must be plugged into the corresponding port number on the SDR-NMS in order for the NMS to
properly detect the modules.
