4. INSTALLATION
4.1 Installation Procedures
4.1.1 Wall Mount Procedure
 Verify that the SDR and mounting hole are in good condition
 Remove all SDR modules from the system
 Place the SDR chassis up against the wall so that that module’s RF ports face the ceiling
 Mount the SDR chassis to wall use the six (6) mounting hold on the wall mount bracket
 Install the SDR modules into the chassis and secure the module by tightening the four (4) hand screws
 Connect the power and data cables at the bottom on the SDR
 Connect the GND cable
 Connect the Antenna cable
 Connect the Power cable

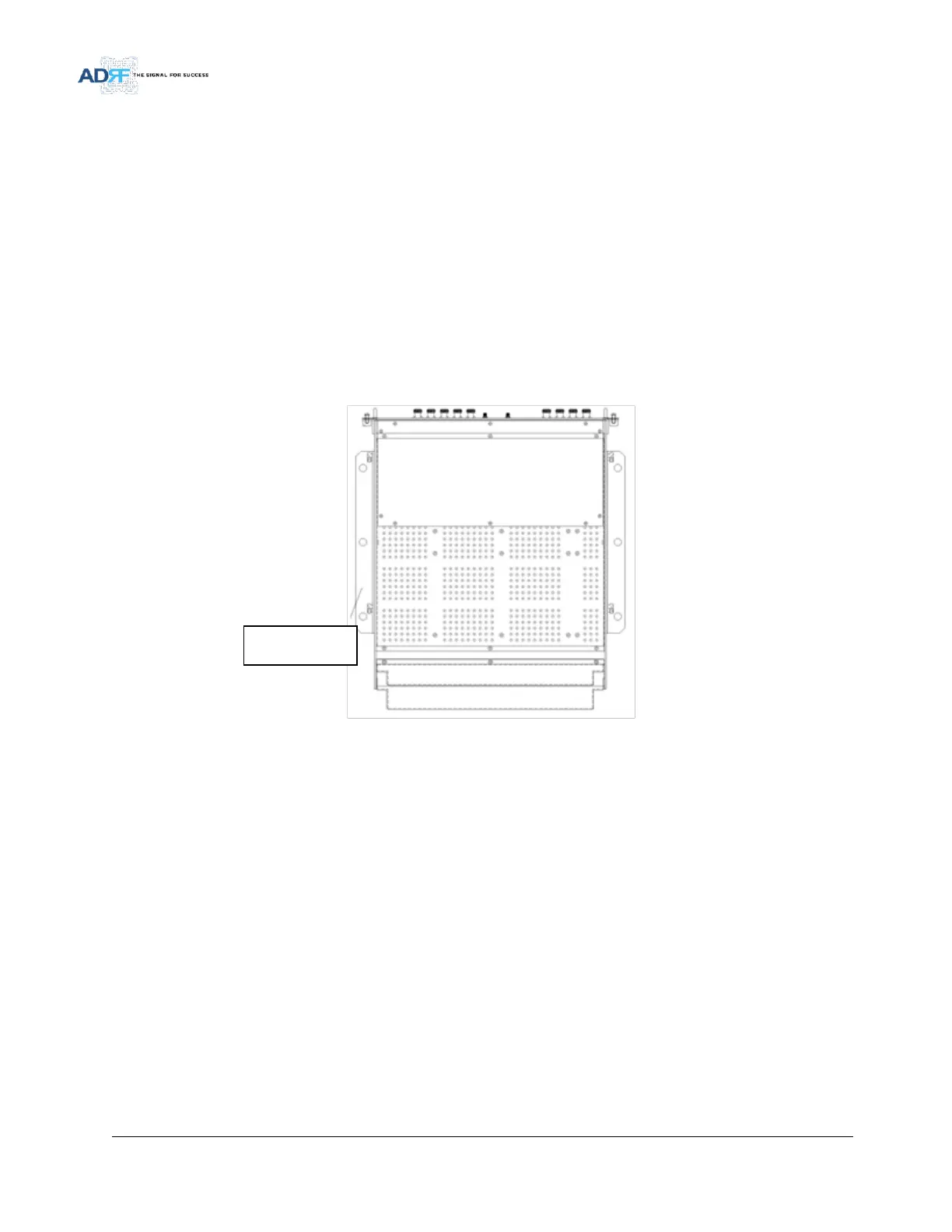

Figure 17 SDR Wall Mount
Wall Mount
Bracket
