4.1.3 SDR CHC Mount Procedure
The SDR-CHC ships with a chassis mounting kit. The SDR-CHC can be directly mounted to the chassis using the
chassis mounting kit. This kit is only needed when wall-mounting the SDR.

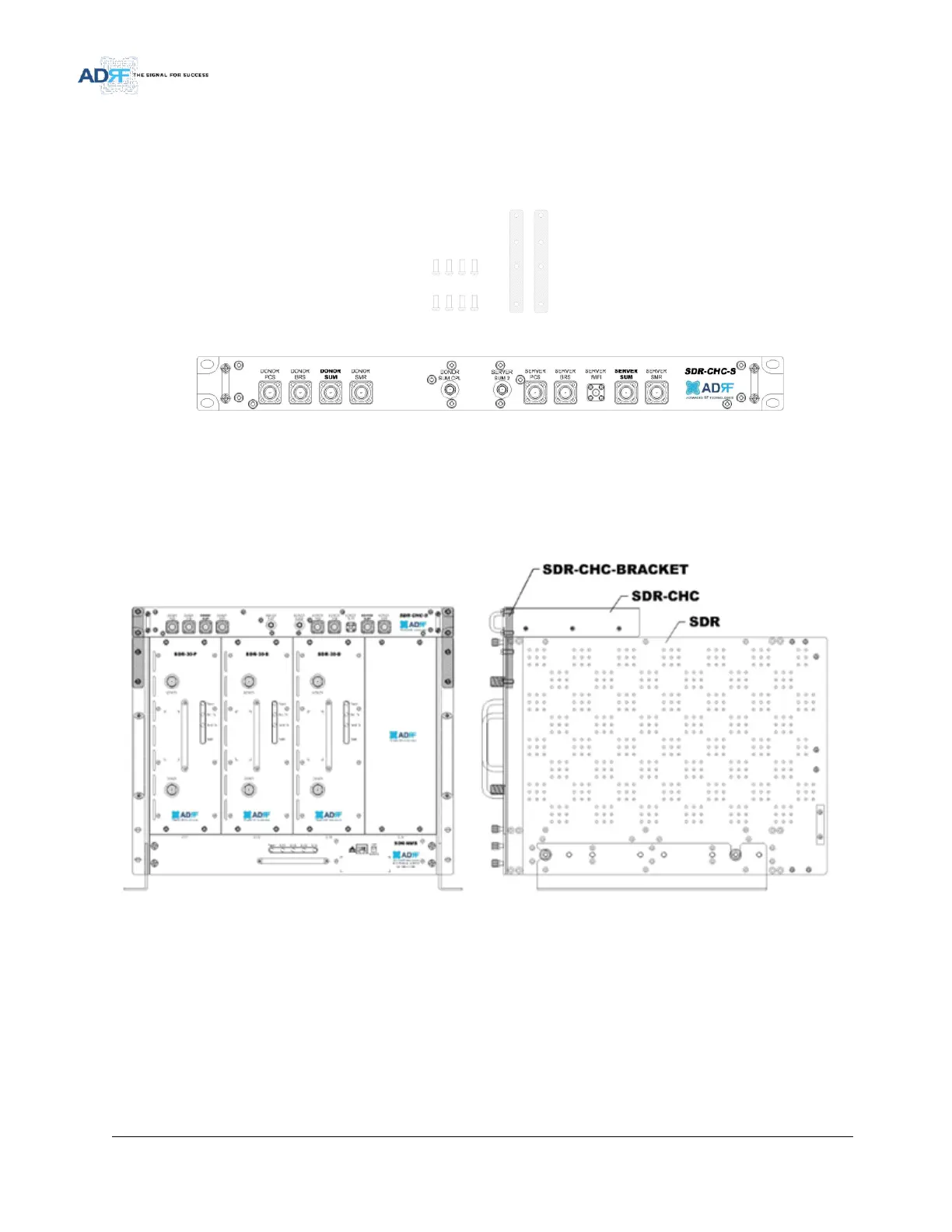

Figure 19 SDR CHC Mount Bracket Kit
Figure 20 SDR CHC Front View
The SDR-CHC is to be placed on top the chassis. The mounting brackets should be installed in the position shown
below in grey. Secure the mounting brackets in place with the screws.
-
Figure 21 SDR CHC Assembly
