4.2 Grounding
Install the ground cable that is included in the package at the back of the repeater as show in the figure below.

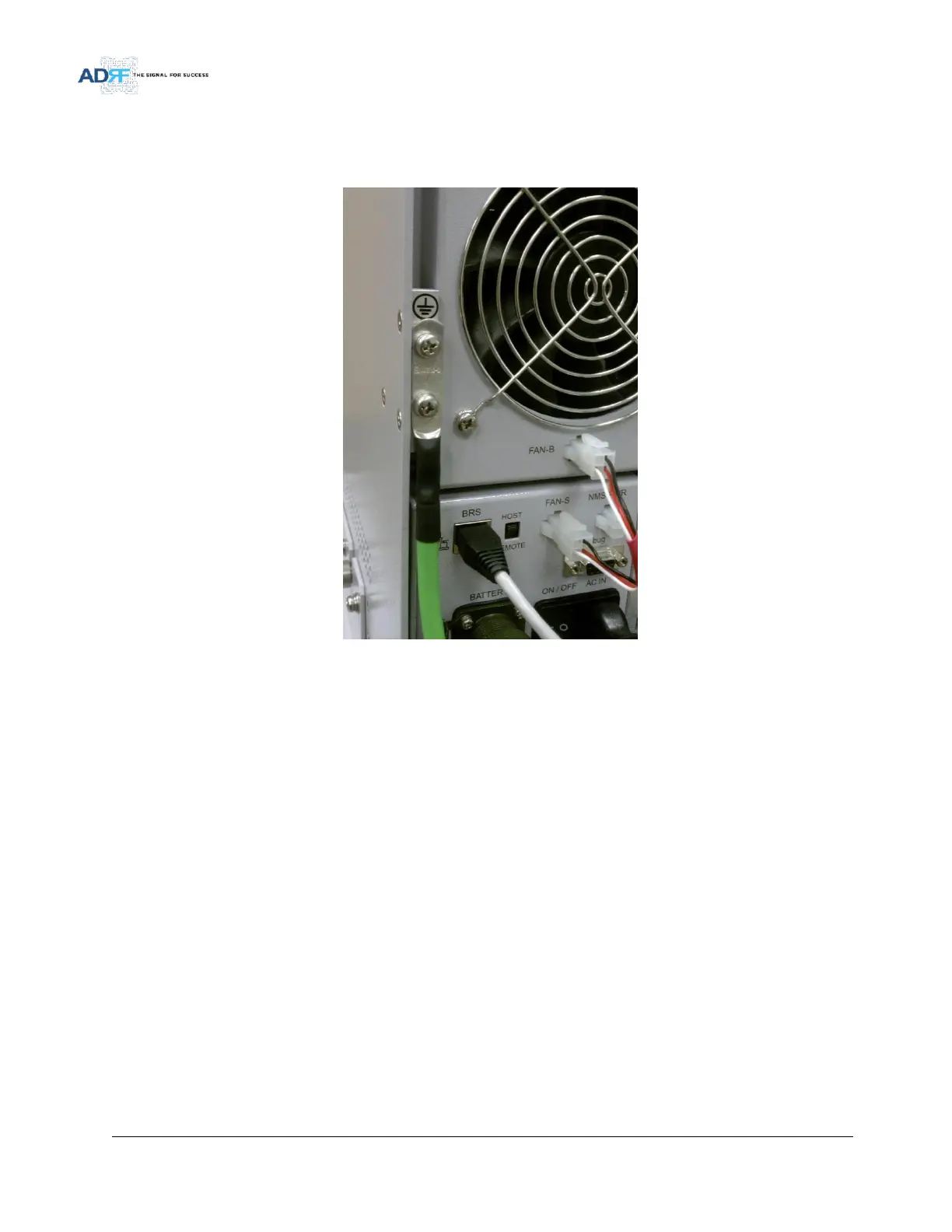

Figure 22 Ground Cable Connection
 Round terminals located on the side of a 0.75 mm2 (18 AWG) or more wires Using permanently connected to
earth.
