SMD17E2 User Manual INSTALLING THE SMD17E2
87
1.3 Mounting (continued)
1.3.3 SMD17E2-60 Outline Drawing

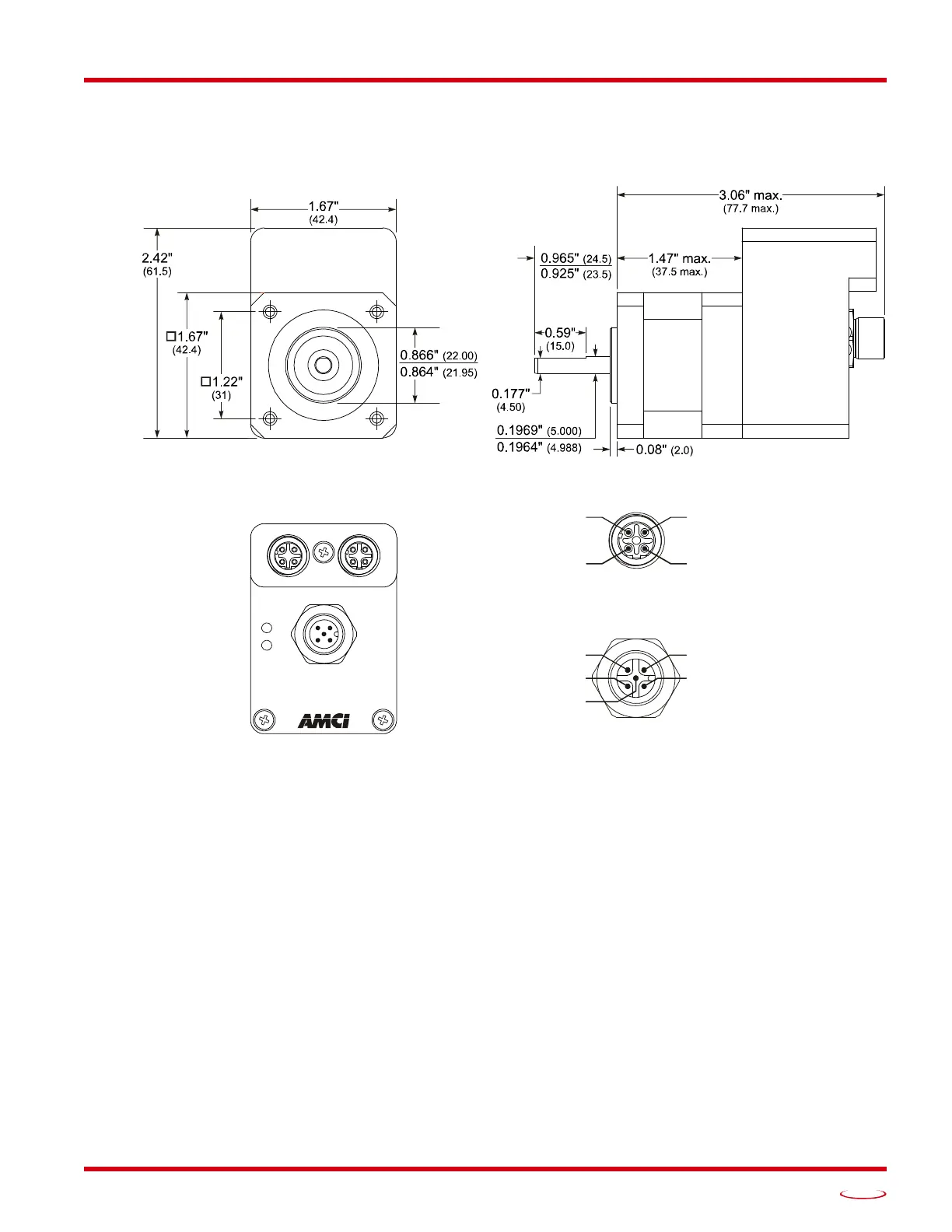

Figure T1.1 SMD17E2-60 Outline Drawing
PORT 2
POWER & INPUTS
MS
NS
PORT 1
Power: 24 to 48 Vdc
Pin 1: +Tx
Pin 2: +Rx
Pin 4: –Rx
Pin 3: –Tx
ETHERNET
Ports 1 & 2
REAR VIEW
POWER & INPUTS
Pin 1: DCPower
MAIN
Pin
5: DCPower
AUX
Pin
2: Input 1
Pin
3: DC Common
Pin 4: Input 2
