7.5 Set the I/O Configuration
The SMD17E2 units require 10 Input Words (20 Input Bytes) and 10 Output Words (20 Output Bytes). All
required Input and Output Bytes are defined by the GSDML file and divided into suitable modules. These set
-
tings are shown in the Table T7.1.
Table T7.1 PROFINET I/O Configuration
1) With the SMD17E2 icon selected on the PROFINET bus, click on the “Device view” tab. The view in the
Hardware Catalog will change. Expand the Module tree to show both the Input and Output modules.
2) To map the I/O bytes to the CPU, double click on the “20 bytes IN” and “20 bytes OUT” icons in the
Hardware Catalog. The system will automatically assign the next I and Q addresses to the data table.

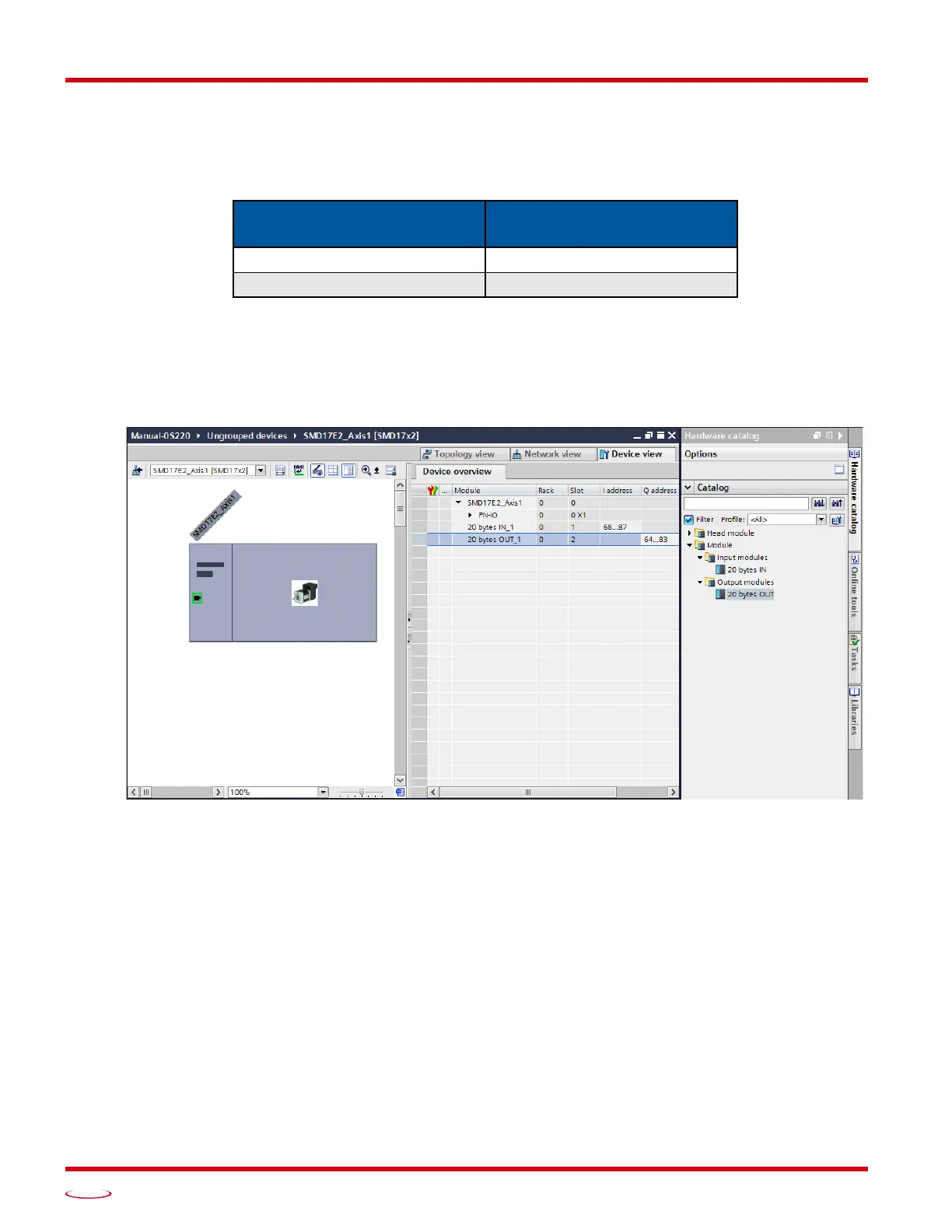

Figure T7.4 I/O Byte Mapping
Input / Output Bytes of an
SMD17E2
Input / Output Modules of an
SMD17E2
20 Input Bytes Input Module - Slot 1: 20 bytes
20 Output Bytes Output Module - Slot 2: 20 bytes
