SMD17E2 User Manual INSTALLING THE SMD17E2
89
1.4 Power and Input Connector
The Power and Input Connector is located on the back of the SMD17E2 unit below the Ethernet connectors.
Figure
T1.3 shows the pinout for the Input Connector when viewed from the back of the unit.

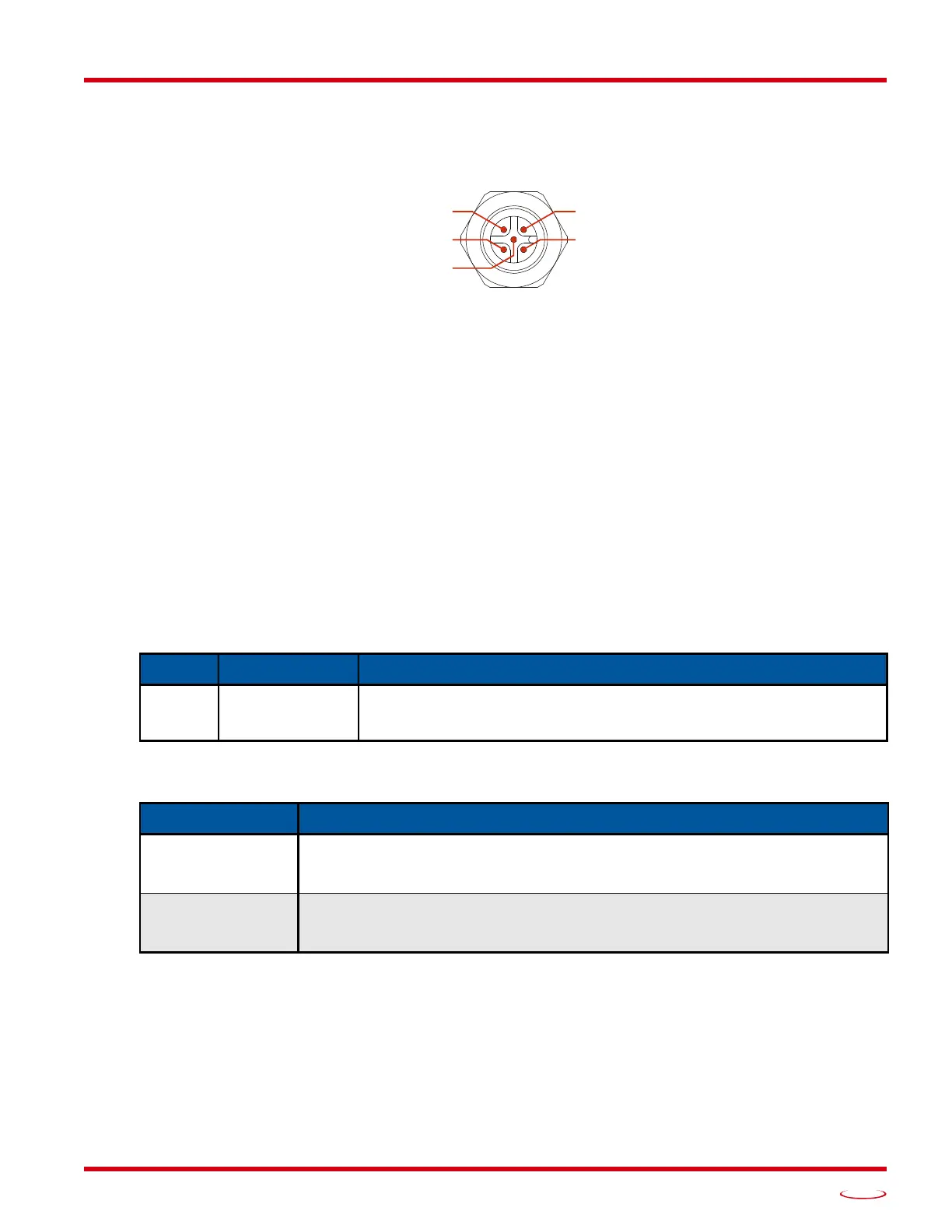

Figure T1.3 Power and Input Connector
Digital inputs on the SMD17E2 units are single ended and referenced to the DC Common pin. There are two
power pins.
 DCPower
MAIN
powers both the control electronics and the motor.
 DCPower
AUX
powers only the control electronics, which includes the encoder if it is available.
Using the DCPower
AUX
pin is optional. If your application requires you to cut power to your motor under
some conditions, using the DCPower
AUX
pin allows you to cut power to your motor without losing your net-
work connection. The connector is a standard five pin A-coded M12 connector that is rated to IP67 when the
mate is properly attached.
1.4.1 Compatible Connectors and Cordsets
Many different connectors and cordsets are available on the market, all of which will work with the SMD17E2
units provided that the manufacturer follows the A-coded M12 standards. The following connector and cord
-
set is available from AMCI.
Connector
Table T1.1 Compatible Connectors
Power Cordset
Table T1.2 Power Cordset
Note that the CNPL-2M and CNPL-5M cordsets are manufactured with 18AWG wires. This is the suggested
minimum gauge wire when using the SMD17E2. If you use a different cordset, verify the gauge of the wire
before making your purchase.
AMCI # Binder # Description
MS-31 99-0436-12-05
Mating connector for Power Connector. 
Female, 5 pin A-coded. Screw terminal connections. 6 to 8 mm dia. cable.
Straight, IP67 rated when properly installed.
AMCI Part # Description
CNPL-2M
5-position, 18 AWG.
Connector: Straight M12, A-coded, Female to 2 inch flying leads, 0.28” stripped.
Cable length: 2 meter
CNPL-5M
5-position, 18 AWG.
Connector: Straight M12, A-coded, Female to 2 inch flying leads, 0.28” stripped.
Cable length: 5 meter
POWER & INPUTS
Pin 1: DCPower MAIN
Pin 5: DCPower AUX
Pin
2: Input 1
Pin 3: DC Common
Pin 4: Input 2
