7 EKI-1526(TI) | 1528(TI) User Manual

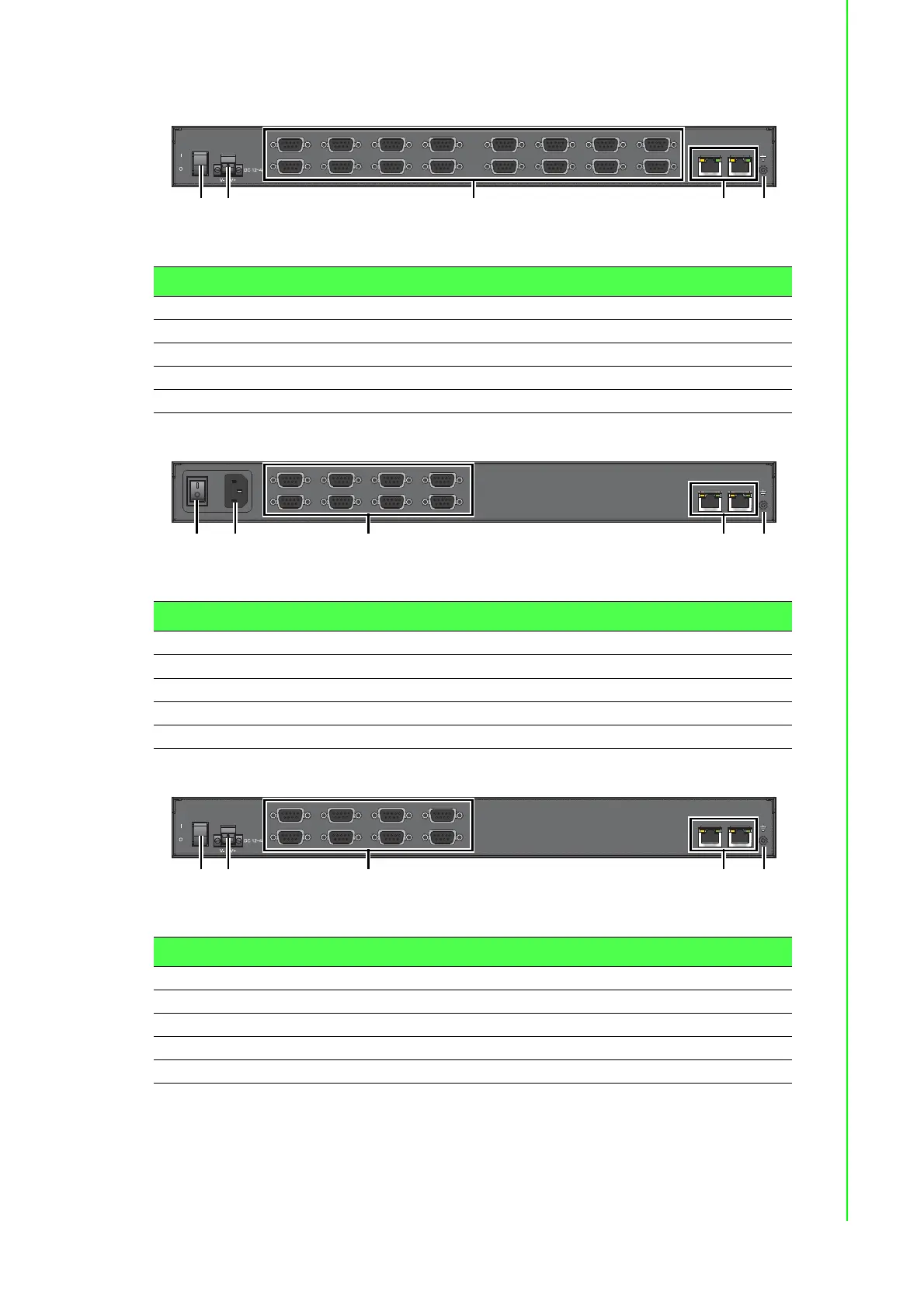

The following view shows the EKI-1526T/EKI-1526TI.
Figure 2.4 Rear View
The following view shows the EKI-1528/EKI-1528I.
Figure 2.5 Rear View
The following view shows the EKI-1528T/EKI-1528TI.
Figure 2.6 Rear View
No. Item Description
1 Power button Turn the device off and on.
2 Terminal block Connect cabling for power wiring.
3 Serial port DB9 pinout, supports RS-232/422/485.
4 ETH port RJ45 ports x 2.
5 Ground terminal Screw terminal used to ground chassis.
No. Item Description
1 Power button Turn the device off and on.
2 AC power in Supports 100 ~ 240 VAC, 50 ~ 60 Hz.
3 Serial port DB9 pinout, supports RS-232/422/485.
4 ETH port RJ45 ports x 2.
5 Ground terminal Screw terminal used to ground chassis.
No. Item Description
1 Power button Turn the device off and on.
2 Terminal block Connect cabling for power wiring.
3 Serial port DB9 pinout, supports RS-232/422/485.
4 ETH port RJ45 ports x 2.
5 Ground terminal Screw terminal used to ground chassis.
LAN1 LAN2
5
1
6
2
7
3
8
4
13
91110
14 15
12
16
1 23 45
LAN1 LAN2
5
1
6
2
7
3
8
4
1 23 45
LAN1 LAN2
5
1
6
2
7
3
8
4
1 2453
