3.3 Menu Bar
You can open the Advantech EKI Device Configuration Utility from the Windows Start
Menu by clicking Start > All Programs > EKI Device Configuration Utility >
Advantech EKI Device Configuration Utility. The Configuration Utility displays as
follows.
For the purposes of this manual, the user interface is separated into six sections.

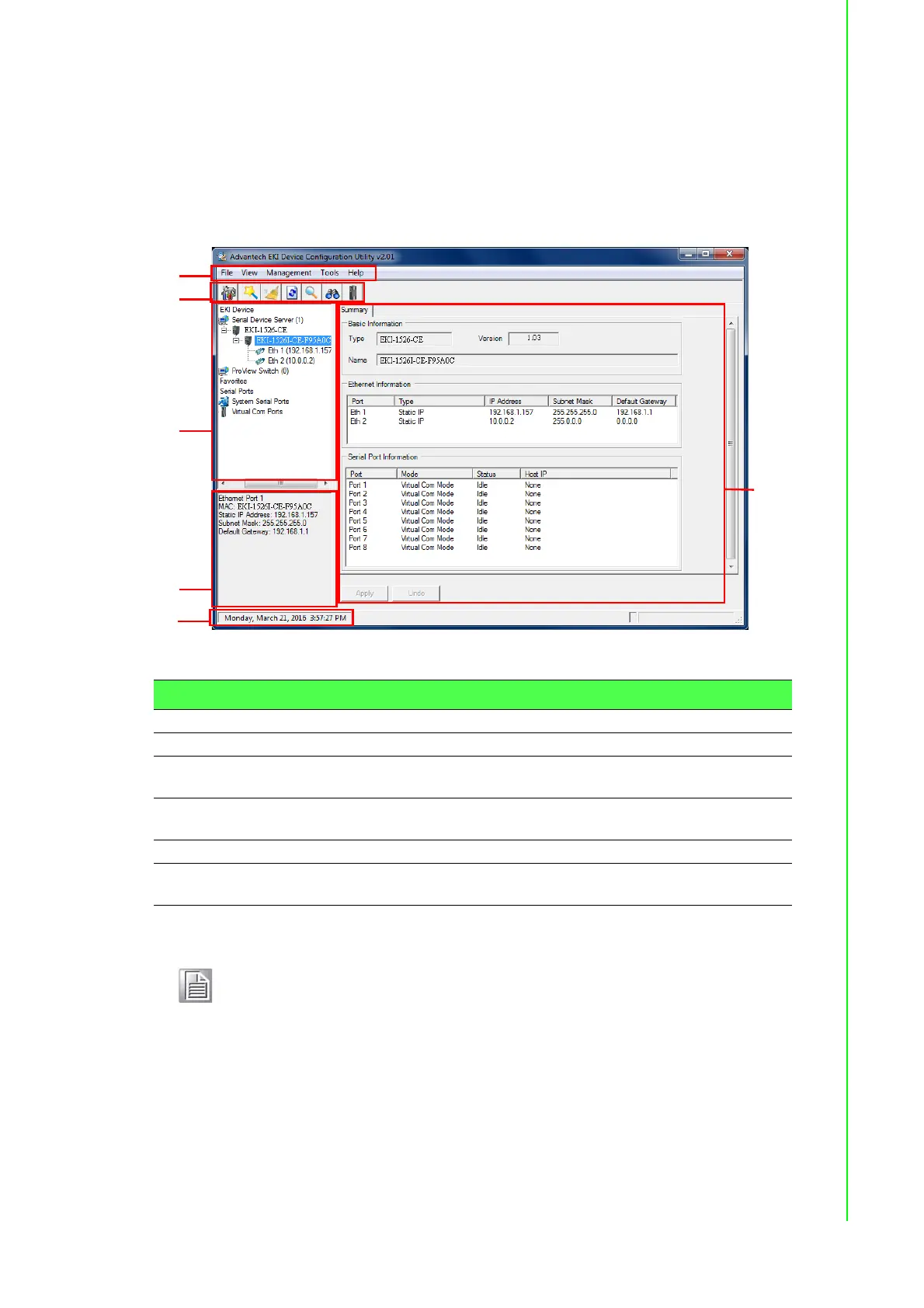

Figure 3.5 Configuration Utility Overview
No Item Description
1 Menu Bar Displays File, View, Management, Tools and Help.
2 Quick Tool Bar Useful management functions shortcuts.
3 Serial Device Server
List Area
Available devices are listed in this area. Devices and COM ports
can be organized or grouped in this area.
4 Information Panel Click on the devices or move cursor to the devices, the related
information is shown in this area.
5 Status Bar Displays the current time.
6 Configuration Area Click on the item on the Device Server List Area, the configura-
tion page displays.
Note! The configuration utility makes use of TCP/UDP ports 5048 and 5058 to
communicate with the Advantech EKI serial device server.
Please reserve TCP/UDP port 5048 and 5058 in your Ethernet network,
configuration utility will use these ports to communicate with Advantech
EKI-1000, ADAM-4570, and EDG-4500 serial device servers.
