Advantech EKI-1526 - Figure 5.2 Selecting Auto Mapping; Figure 5.3 Mapping Selected Ports; Figure 5.4 Viewing VCOM Mapping Results

EKI-1526(TI) | 1528(TI) User Manual 44
The selected address displays the Device Port and (EKI serial device server
physical serial port) and the system port which will be the VCOM port for the PC.

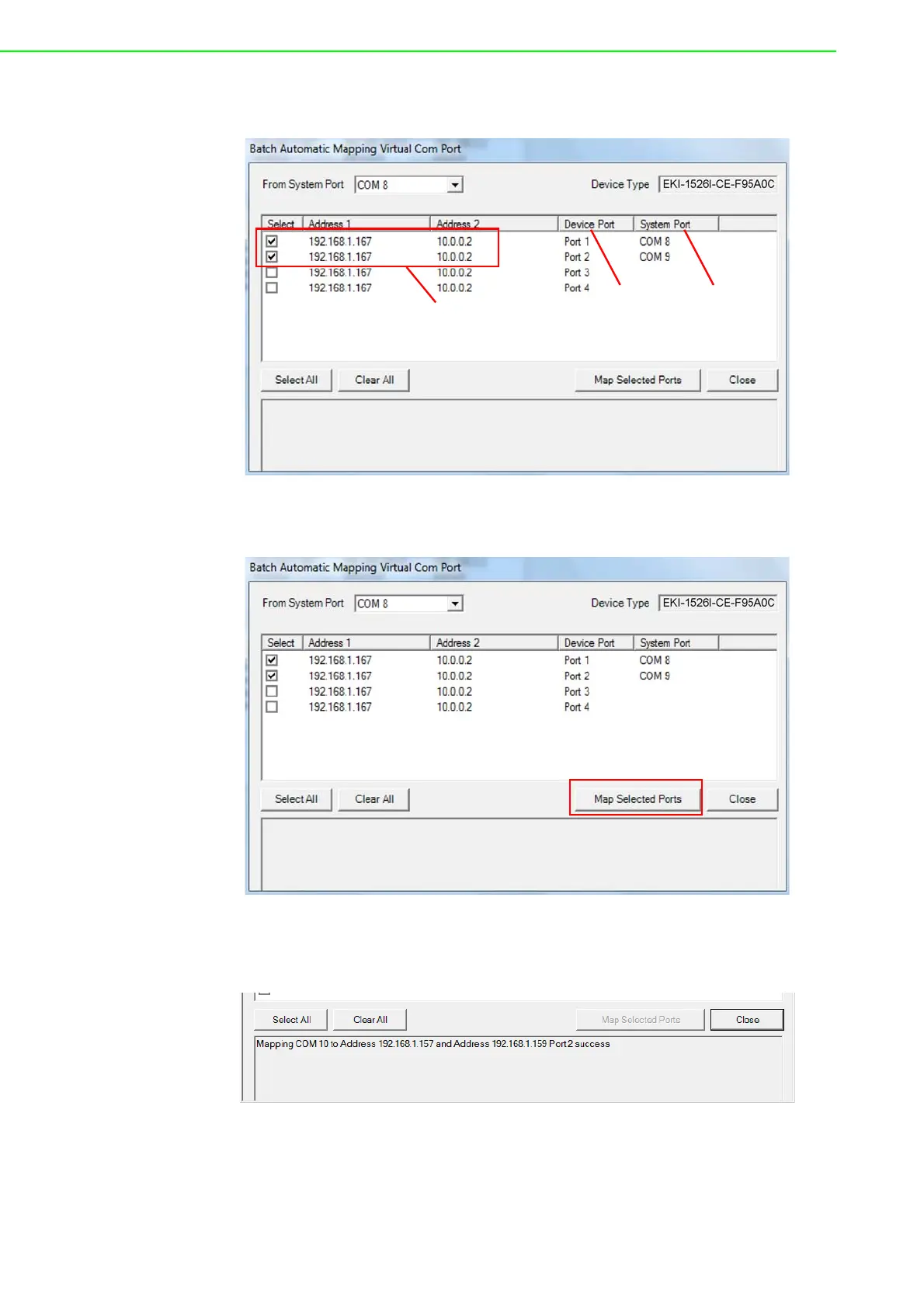

Figure 5.2 Selecting Auto Mapping
7. From the network address list, select the address options to map.
8. Click Map Selected Ports to set the configuration.
Figure 5.3 Mapping Selected Ports
Once the mapping function is initialized, a successful mapping process results
in the virtual mapping of the designated physical serial port and VCOM PC port.
See the following figure.
Figure 5.4 Viewing VCOM Mapping Results
SystemDevice Port
Selected Options
