Advantech EKI-1526 - Figure 3.10 Selecting a Group; Figure 3.11 Selecting a Device

EKI-1526(TI) | 1528(TI) User Manual 24

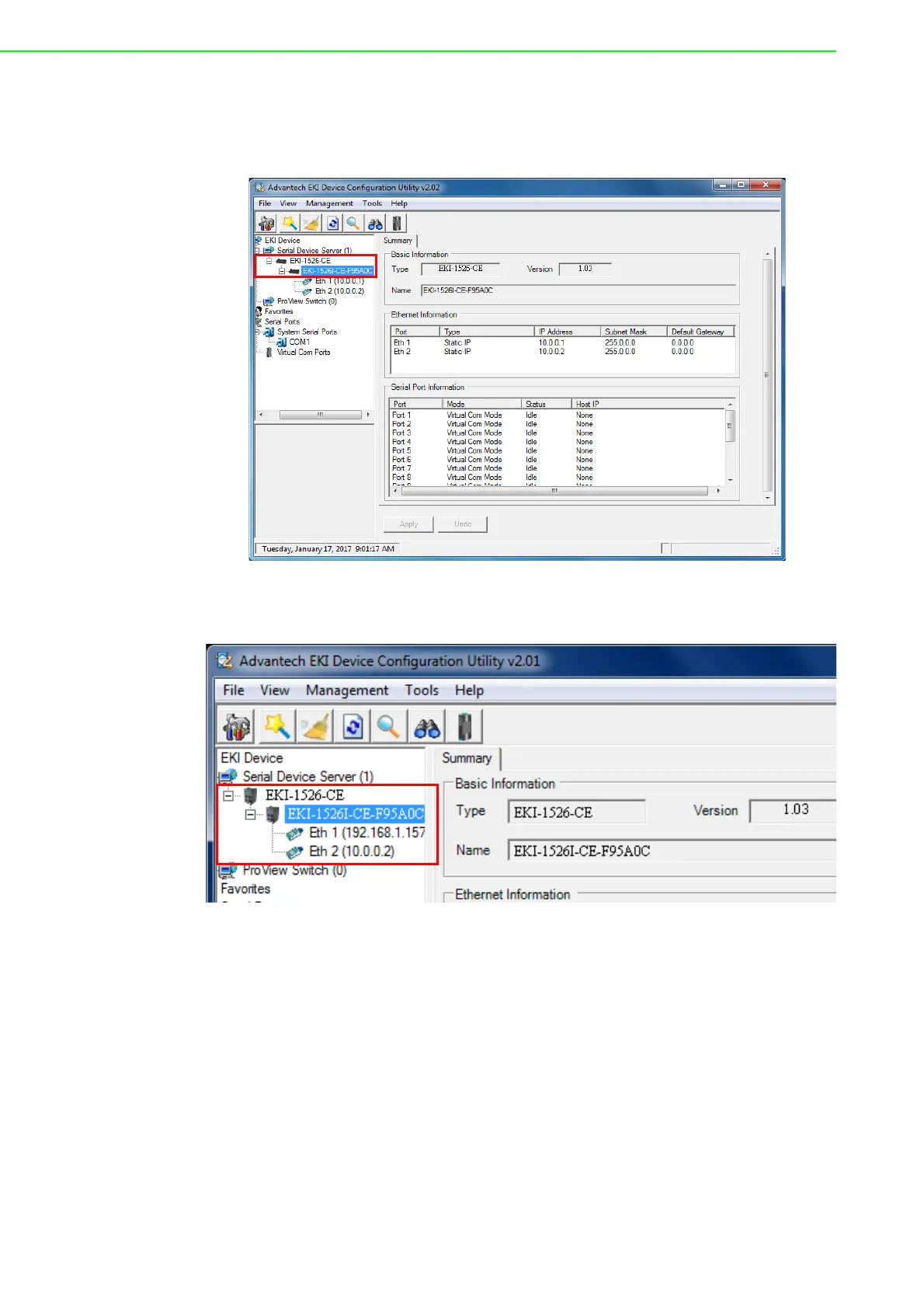

Select the device in this sub-tree. The Configuration Area shows a summary of
“Basic Information”, including device type, version, and name, “Ethernet Information”,
and “Serial Port Information”. The serial port information frame displays the operation
mode, status and connected host IP.
Figure 3.10 Selecting a Group
Click on the “+” before the device name, and the utility will expand the interfaces on
this device server.
Figure 3.11 Selecting a Device
