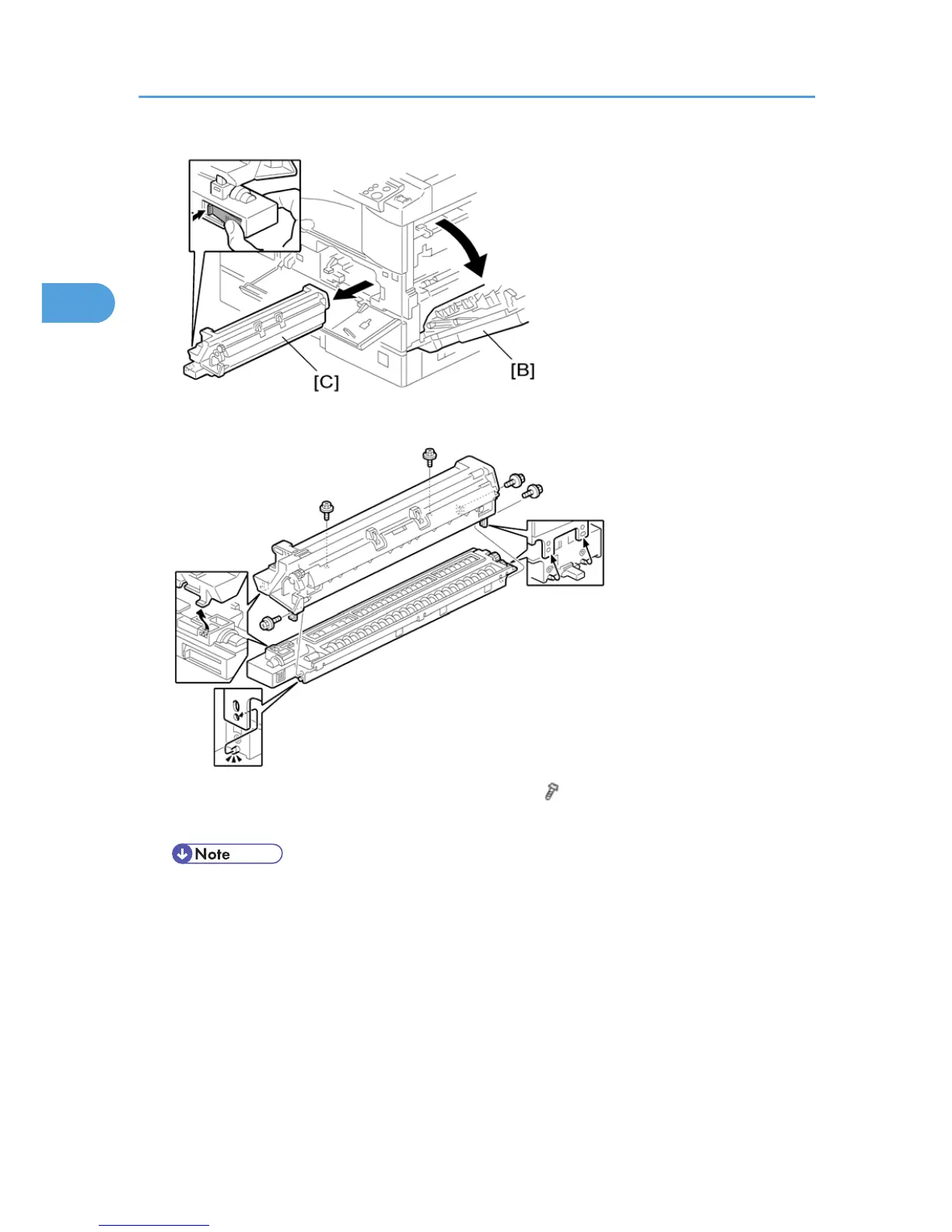

3. Open the right door [B], and remove the PCU (photoconductor unit) [C].
4. Separate the PCU into the upper part and the lower part ( x 5).
5.
Put a sheet of paper on a level surface and place the upper part on it.
• This prevents foreign material from getting on the sleeve rollers
2. Installation
22
2
