Aficio MP1900 - PSU (Power Supply Unit)

3. Fan cover [A] ( x 3)
4. Fan [B] ( x 3, x 1)
• Make sure that the arrow on the fan [C] points the outside of the copier when you reassemble. The
arrow indicates the direction of the air current.
PSU (Power Supply Unit)
1. Left cover
2.

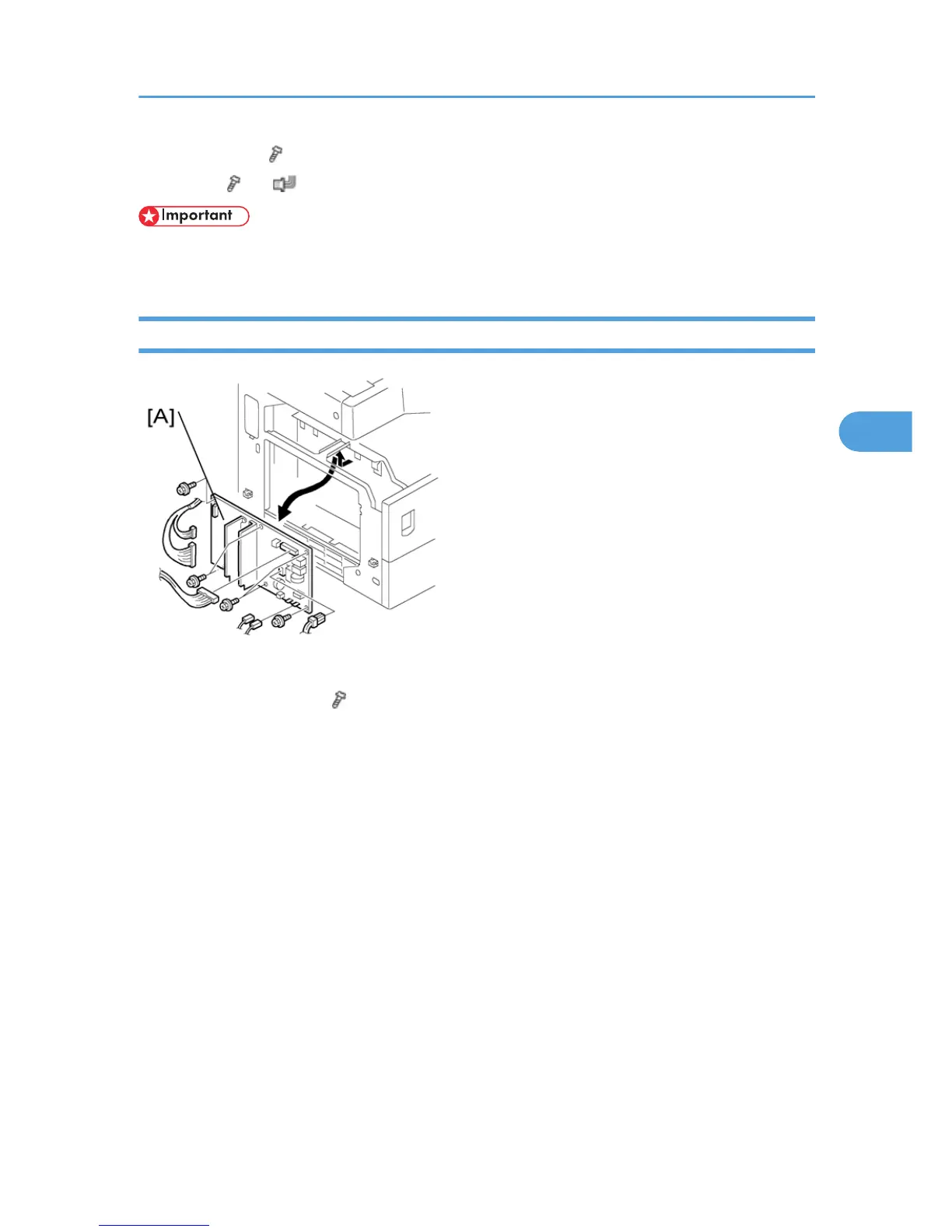

PSU [A] (All connectors,
x 6)
Other Replacements
91
4
