3. Release the by-pass tray cable from the clamps (see [A] on the preceding procedure) and disconnect
the connector (5-pin connector with colored wires).
4. Front-side clip ring [A]
5. Front-side pin [B] (You can push the pin from behind the right door.)
6. Front-side tray holder arm [C]
7. Remove the rear-side clip ring, pin, and tray holder arm in the same manner.
8. By-pass tray [D]

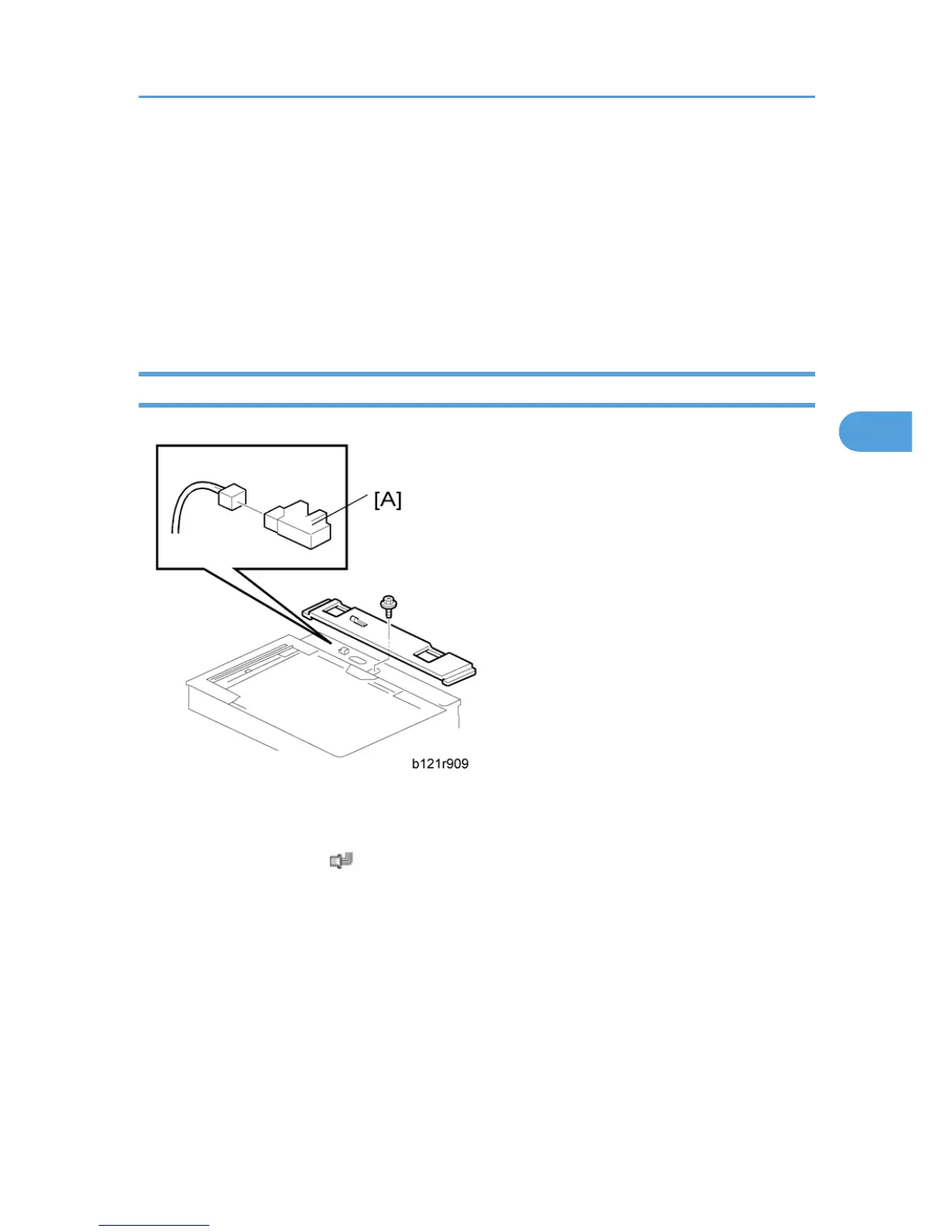

Platen Cover Sensor
1. Top rear cover
2.
Platen cover sensor [A] (
x 1)
Exterior Covers & Operation Panel
47
