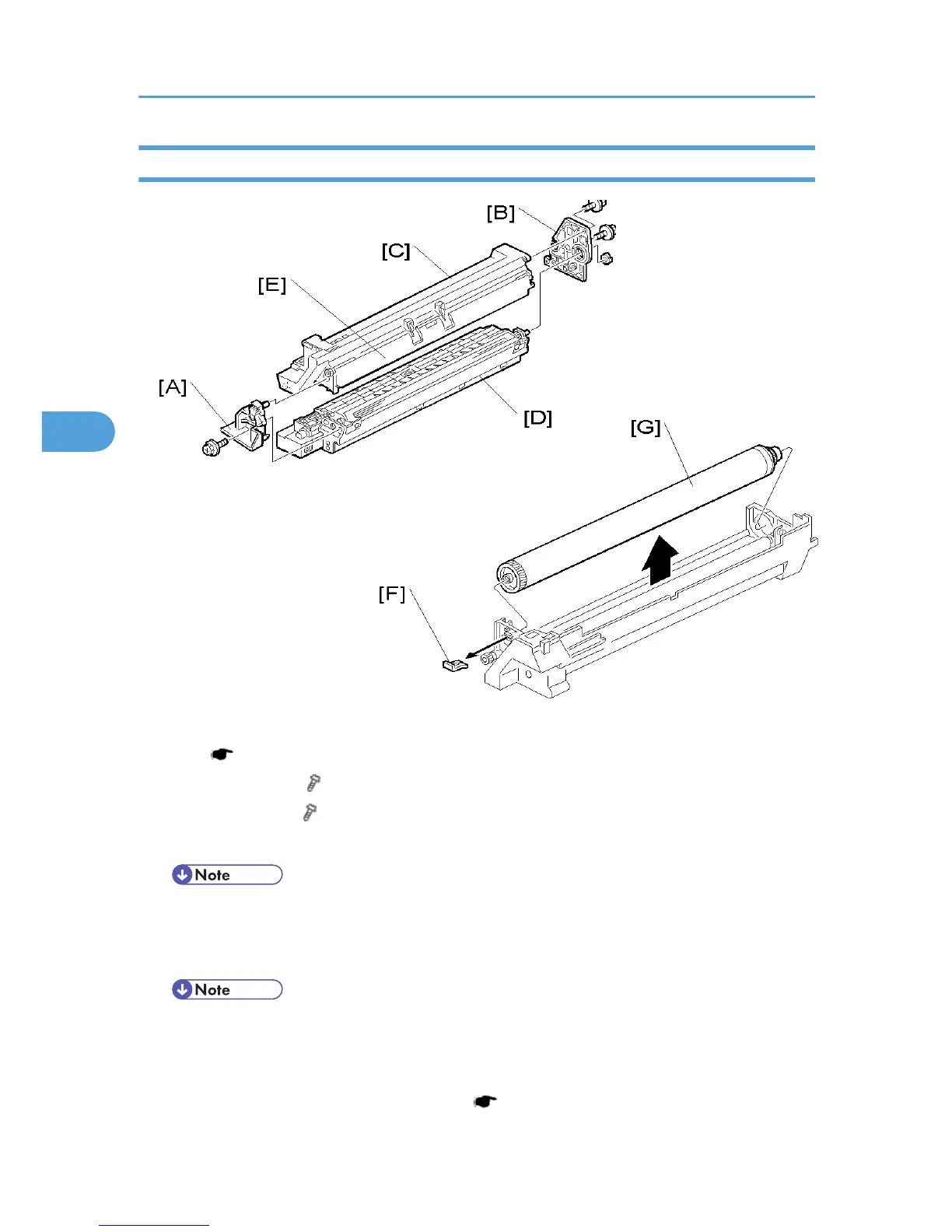

OPC Drum
1. PCU ( p.63)
2.
Front side piece [A] (
x 1)
3.
Rear side piece [B] (
x 2, 1 coupling)
4.
Separate the drum section [C] from the developer section [D].
• To ensure that the left-side gears line up, keep the drum cover [E] closed when reinserting the
front side piece.
5.
Pry out the drum retaining clip [F].
• Install the clip in the same orientation (with the lip facing away from the drum shaft) when you
reassemble.
6.
OPC drum [G]
7. When reassembling, adjust the image quality (
p.69 "After Replacement or Adjustment").
4. Replacement and Adjustment
66
