Aficio MP1900 - Registration Roller

Registration Roller
1. PCU
2. Front cover
3. Right door
4. Rear cover
5. High-voltage power supply
6. Registration clutch

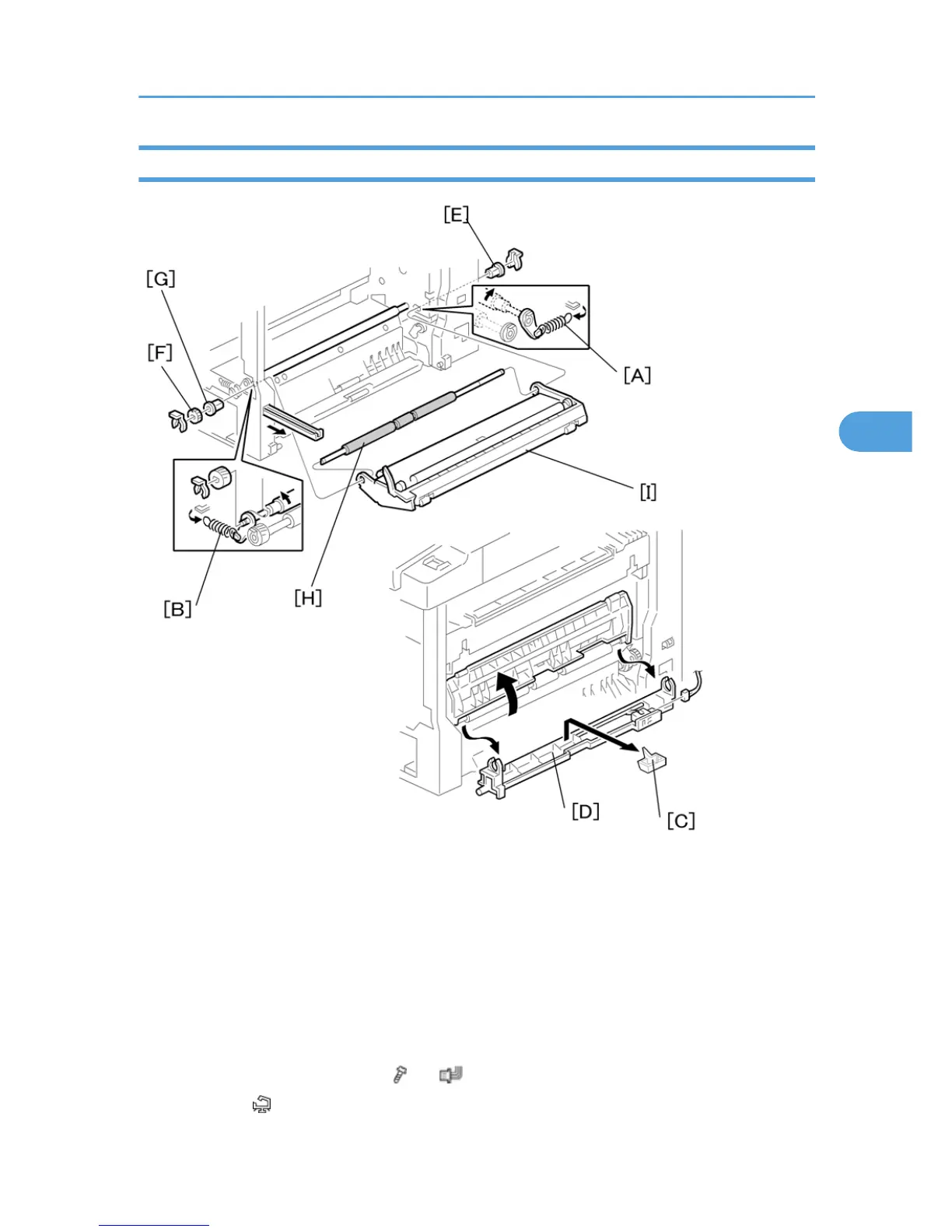

7. Unhook the springs [A] and [B] at the rear and front sides.
8. Guide support [C] and guide [D] ( x 1, x 1)
9. Bushing [E] ( x 1)
Paper Feed Section
75
4
