Scanner Motor
1. Left
upper cover, front upper left cover, operation panel, top rear cover (
p.48
"Exposure Glass/
DF Exposure Glass ")
2. Exposure glass (
p.48 "Exposure Glass/DF Exposure Glass ")
3.

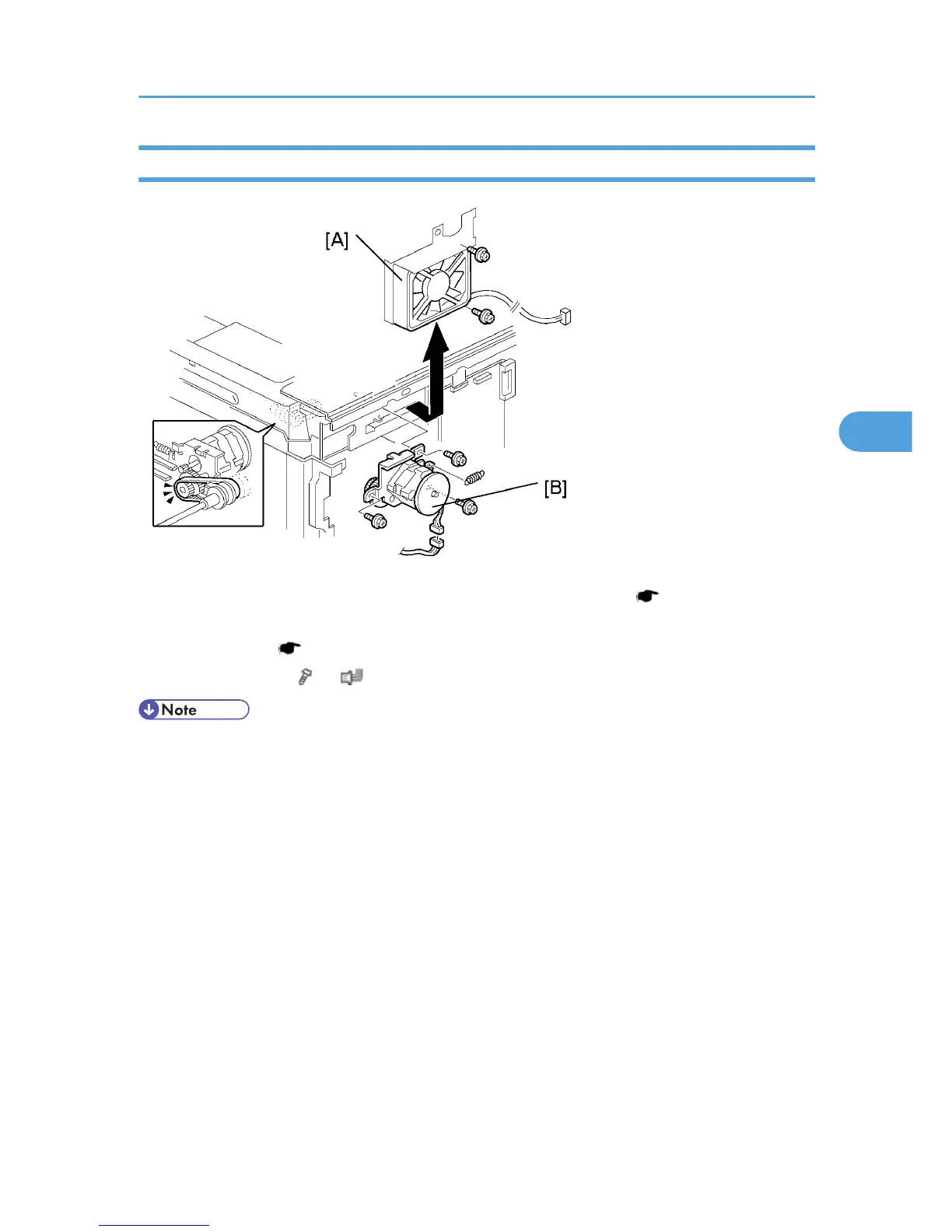

Scanner motor [B] (
x 3, x 1, 1 spring, 1 belt)
• Install the belt first, and then set the spring when you reassemble. Fasten the leftmost screw (viewed
from the rear), and fasten the other two screws.
•
Adjust the image quality after you install the motor.
Scanner Unit
51
