Aficio MP1900 - Upper Covers

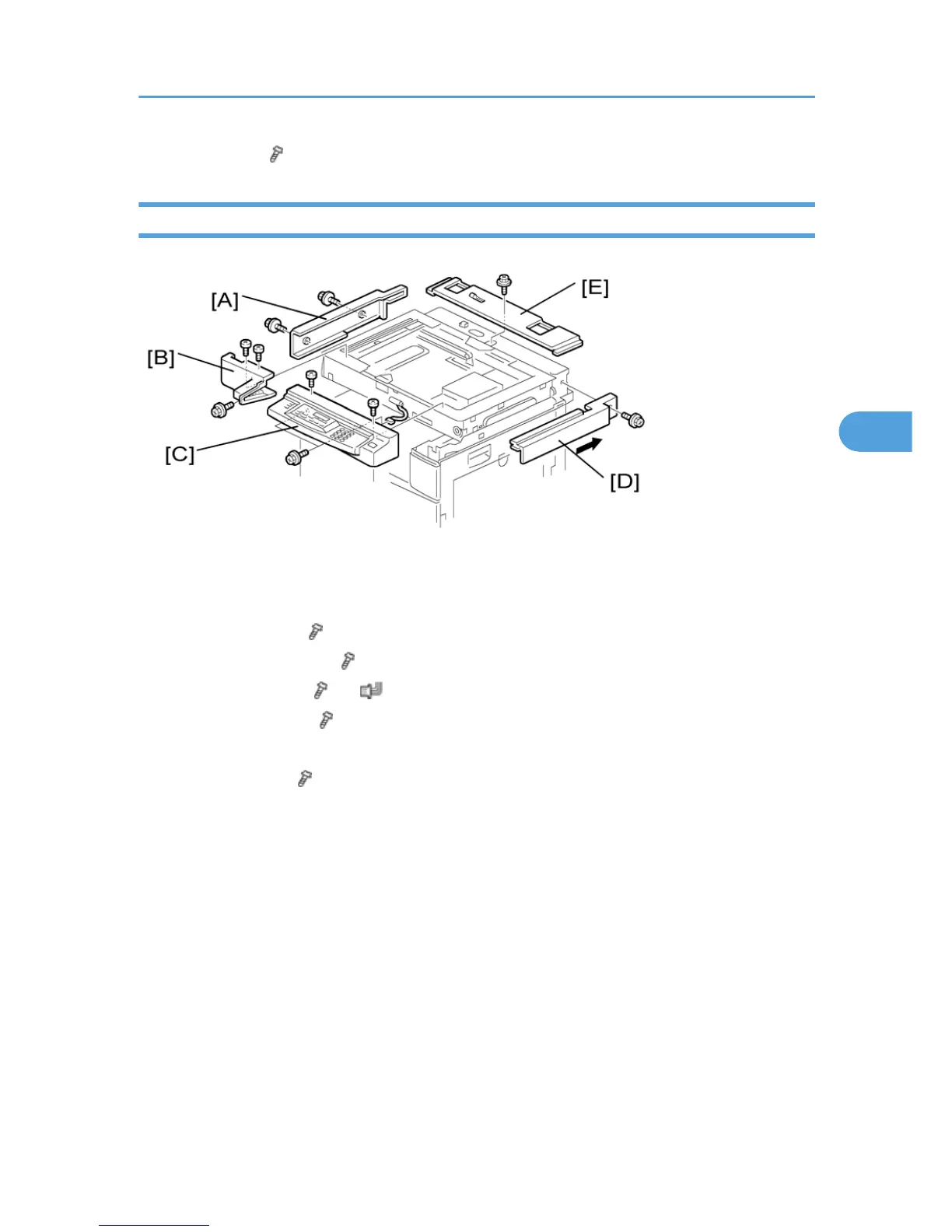

1. Copy tray [A] ( x 2)
Upper Covers
1. Platen Cover or ADF (if installed)
2.
Rear cover
3. Left upper cover [A] (
x 2)
4.
Front upper left cover [B] (
x 3)
5.
Operation panel [C] (
x 4, x 1)
6.
Right upper cover [D] (
x 1, 3 hooks)
7.
Push the cover to the rear side to release the hooks.
8. Top rear cover [E] (
x 1)
Exterior Covers & Operation Panel
43
