Aficio MP1900 - Charge Roller and Cleaning Brush; Cleaning Blade

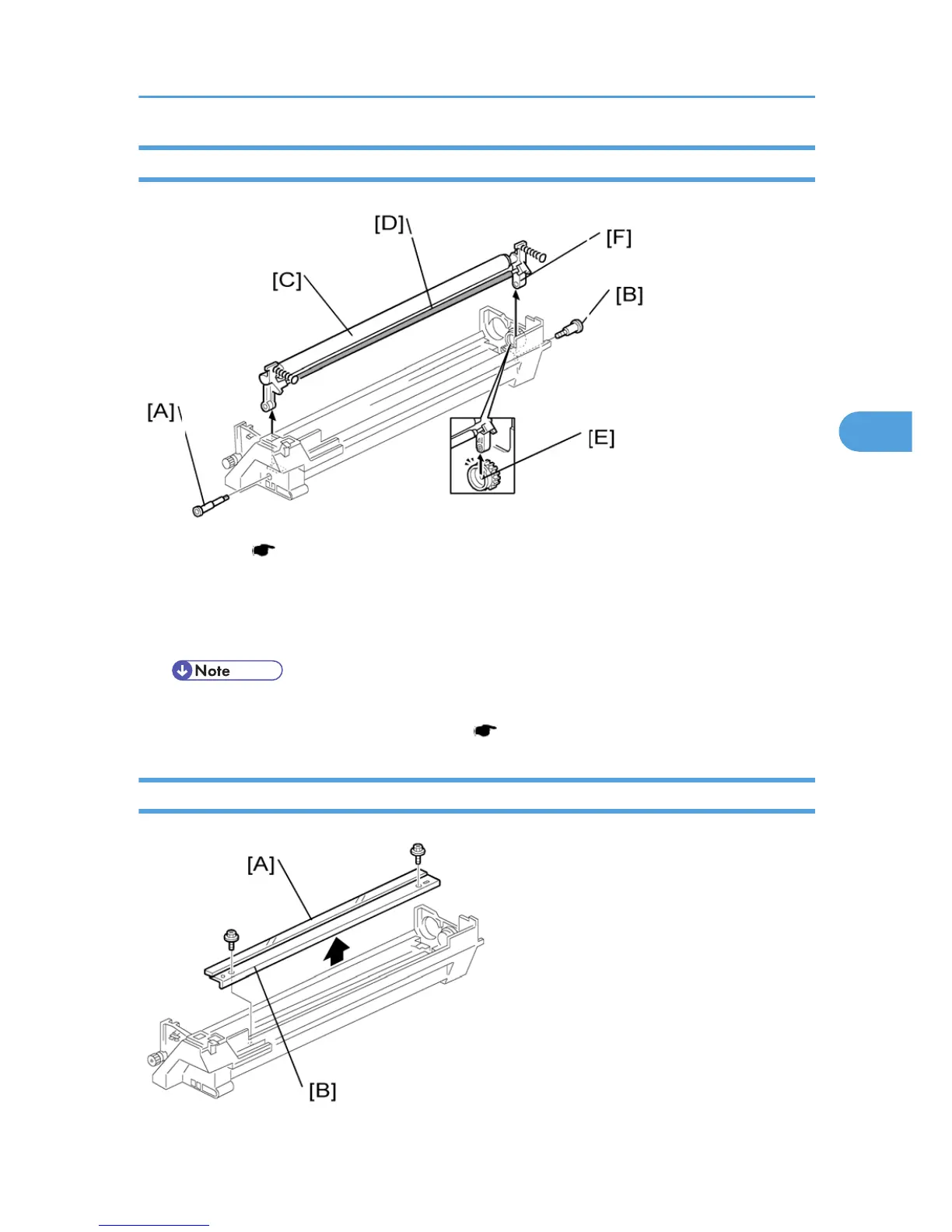

Charge Roller and Cleaning Brush
1. OPC Drum ( p.66)
2.
Holding pin [A]
3. Stepped screw [B]
4. Charge roller [C] and cleaning brush [D] (with the holders and springs)
• Turn the gear [E] (as necessary) so that the rear holder [F] comes out.
5.
When reassembling, adjust the image quality (
p.69 "After Replacement or Adjustment").
