Scanner Unit
Exposure Glass/DF Exposure Glass

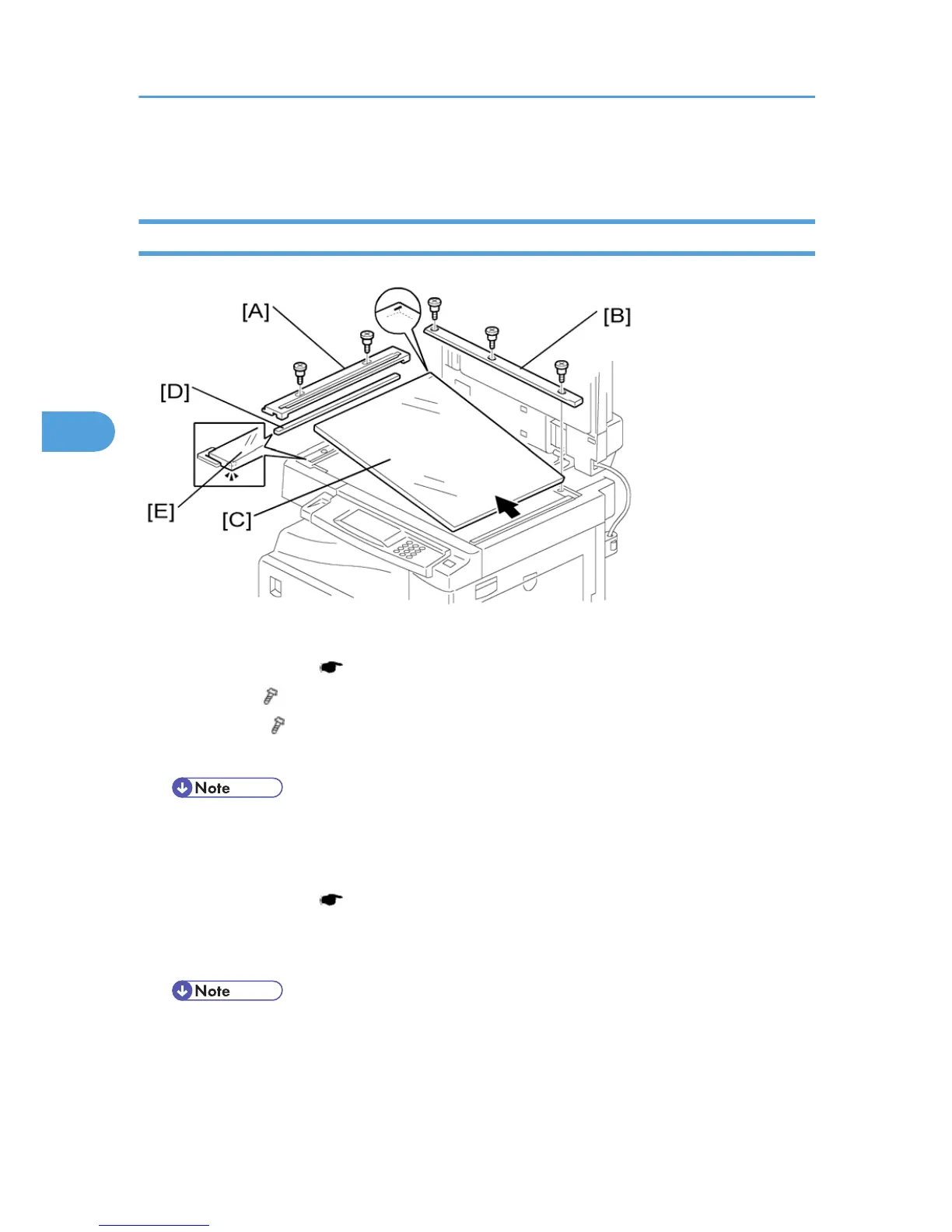

- Exposure Glass -
1.
Front upper left cover (
p.43 "Upper Covers")
2.
Left scale [A] (
x 2)
3.
Rear scale [B] (
x 3)
4.
Exposure glass [C]
• Make
sure that the mark is at the rear left corner, and that the left edge is aligned to the support
on the frame when you reinstall the exposure glass.
- DF Exposure Glass -
1. Front upper left cover (
p.43 "Upper Covers")
2.
Left scale [A]
3. DF exposure glass [D]
• Make sure that the mark [E] is on the bottom at the front end when reinstall the exposure glass.
4. Replacement and Adjustment
48
