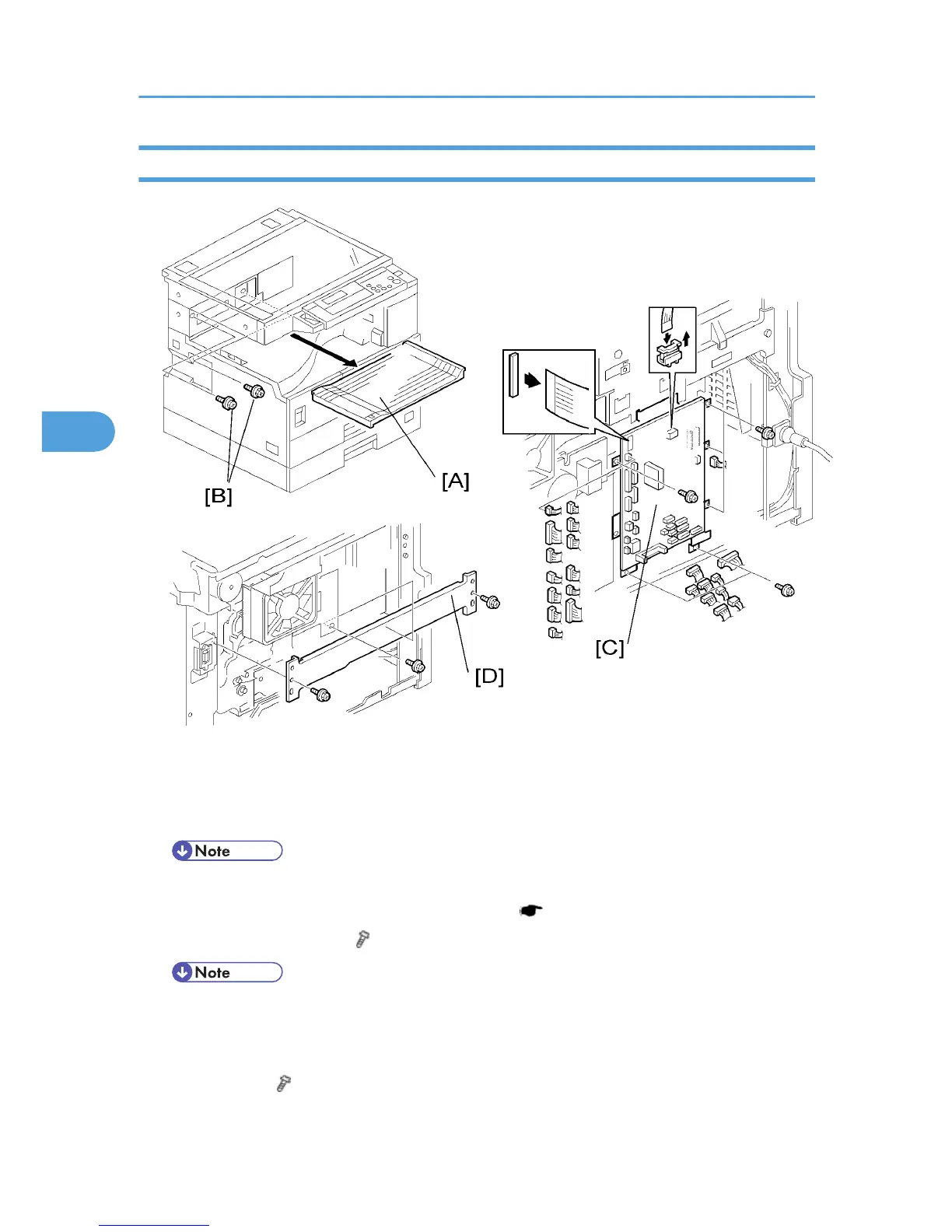

Gearbox
- Replacement Procedure -
1.
Inverter tray [A]
2. Two screws [B] from the middle rear cover
• This step releases the topmost part of the BICU bracket.
3.
High-voltage power supply board (with the bracket) (
p.77)
4.
BICU (with the bracket) [C] (
x 6)
• If you have difficulty to remove the bracket, remove the screw at the middle of the crosspiece
(see step 6).
5.
Main motor
6. Crosspiece [D] (
x 3)
7.
Registration clutch
4. Replacement and Adjustment
92
