8. PCU
• This step releases the gear (on the gearbox) that drives the PCU.
9.
Ground plate [E] (
x 2)
10.
Gearbox [F] (
x 5, 1 belt)
Do
not change the position of the spring [G] and make sure that the bushing [H] on the PCU drive shaft is
in the correct position you when you reassemble. You can adjust its position by rotating the gear [I] seen
from the opening of the gearbox.

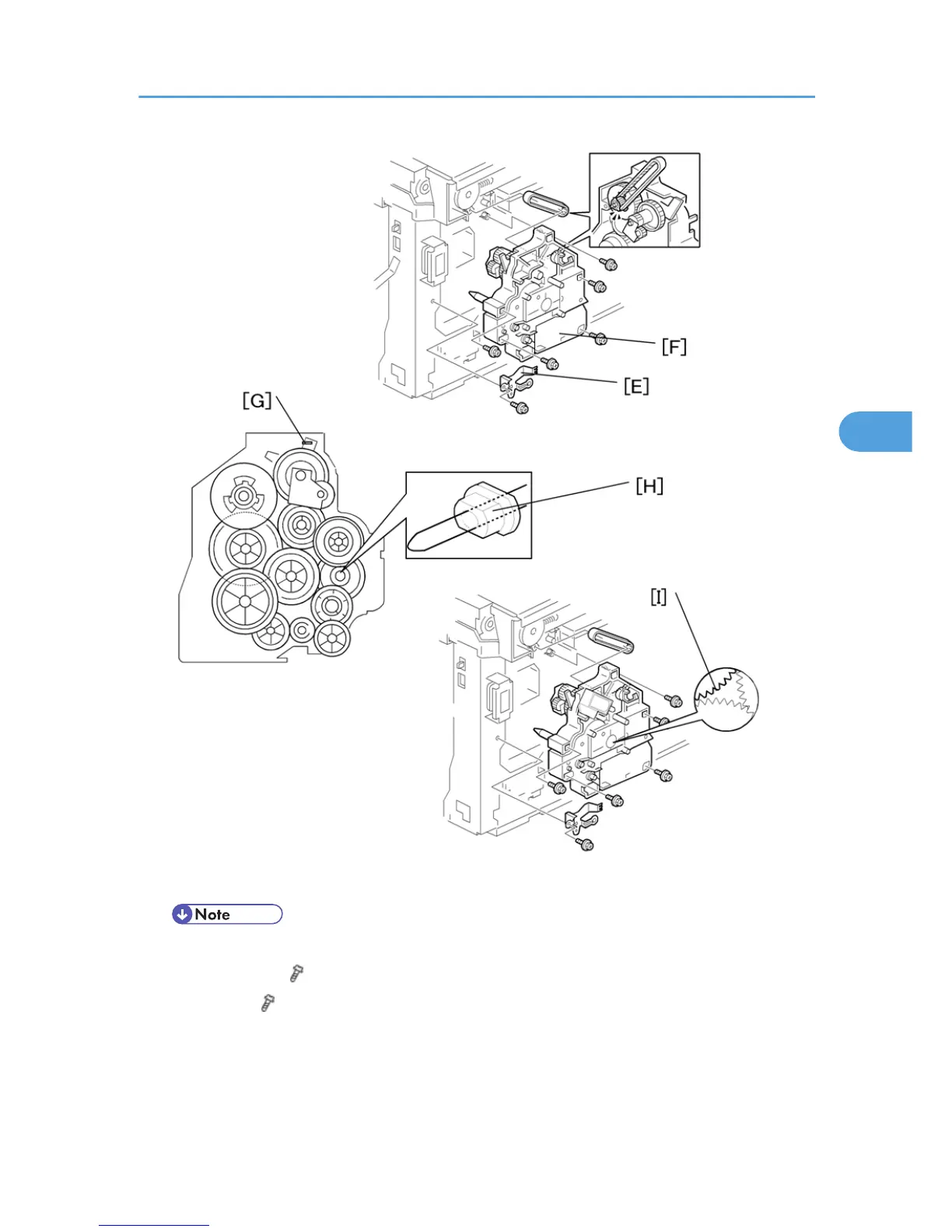

- Gear Arrangement in the Gearbox -
