Aficio MP1900 - Friction Pad; Paper End Sensor

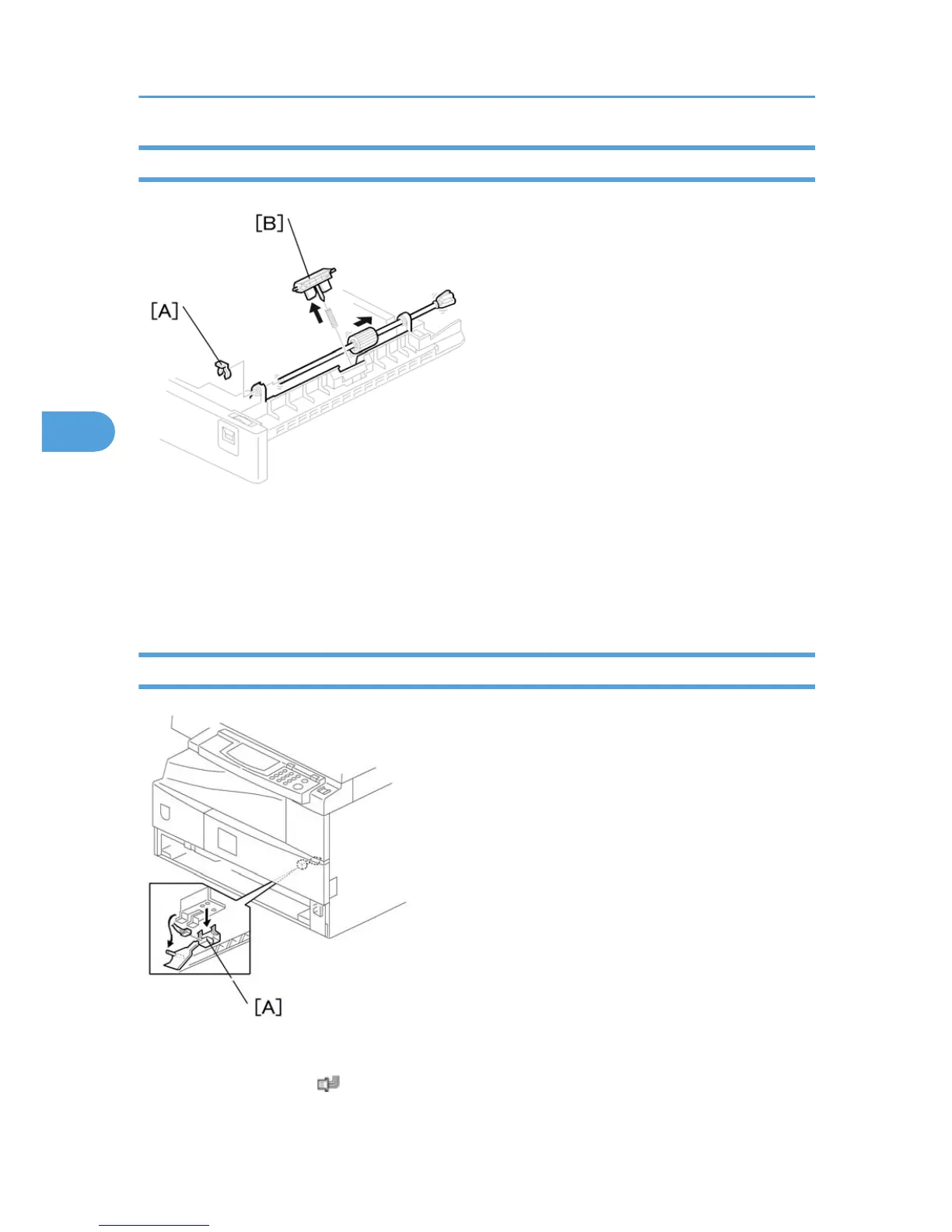

Friction Pad
1. Paper cassette
2.
Clip [A]
3. Push the shaft back through the opening, so that the roller moves clear of the friction pad.
4. Friction pad [B]
Paper End Sensor
1. Paper cassette
2.
Paper end sensor [A] (
x 1)
4. Replacement and Adjustment
72
4
