Aficio MP1900 - PCU Section; Pcu

PCU Section
PCU

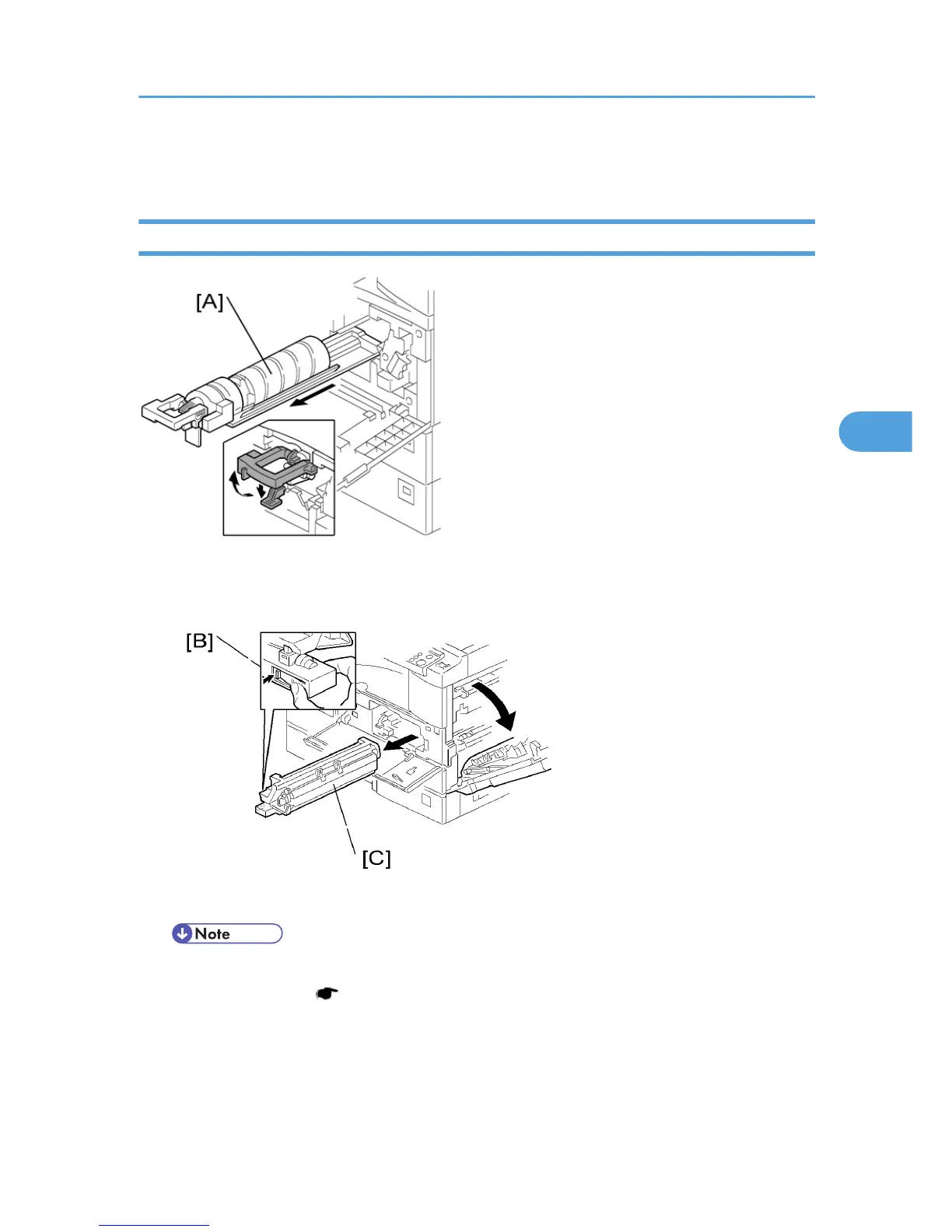

1. Toner bottle with the holder [A]
2.
Open the right door.
3. Press the latch [B] and pull out the PCU [C].
• Do not touch the OPC drum surface with bare hands.
4.
Load new developer (
p.68).
5.
Do SP 2214 to reinitialize the TD sensor when you reassemble.
PCU Section
63
4
