Aficio MP1900 - Right Door; By-Pass Tray

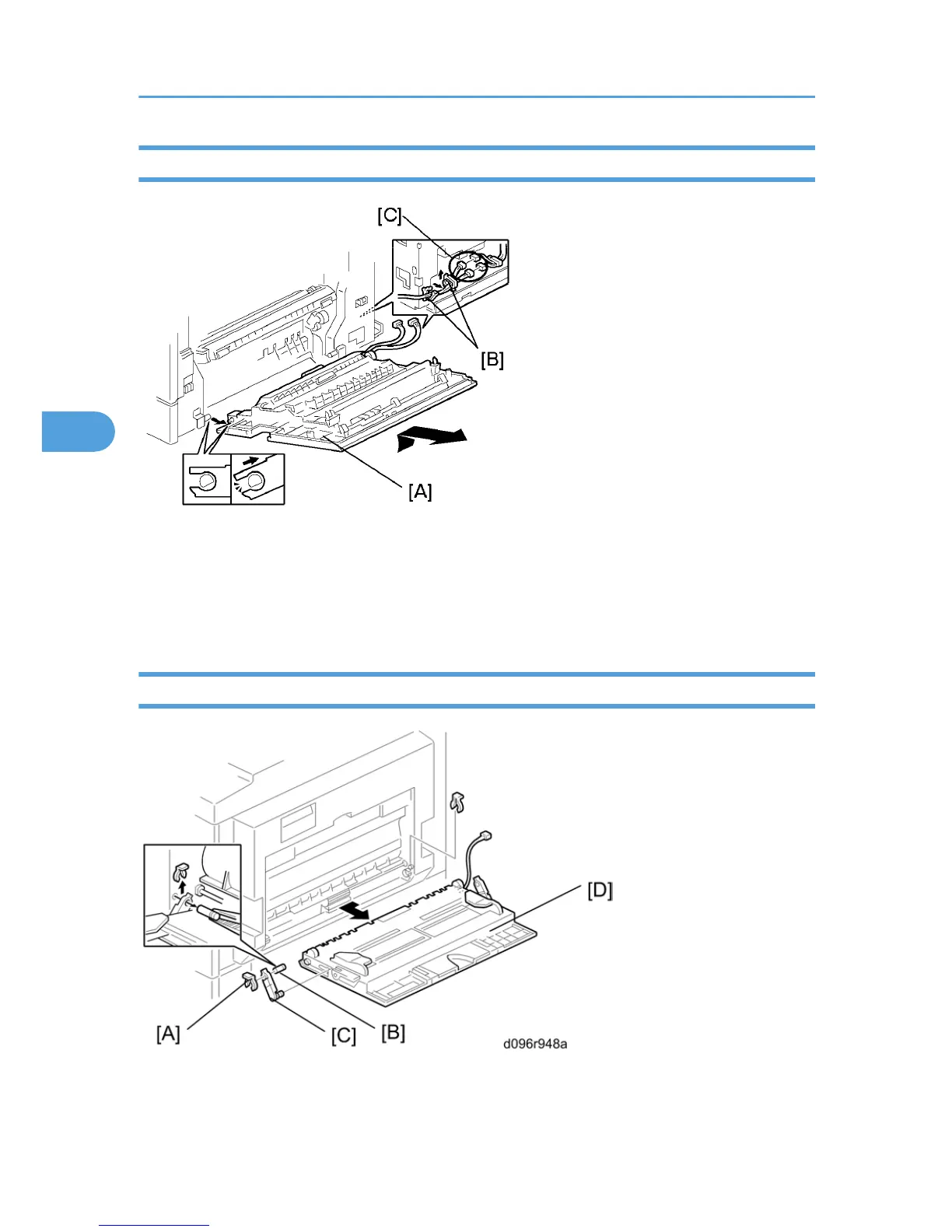

Right Door
1. Right rear cover (see above)
2.
Open the right door [A].
3. Open the clamps [B] and disconnect the two connectors [C].
4. Right door
By-pass Tray
1. Right rear cover (above)
2.
Open the right door.
4. Replacement and Adjustment
