Aficio MP1900 - Page 67

1. PCU ( p.63)
2.

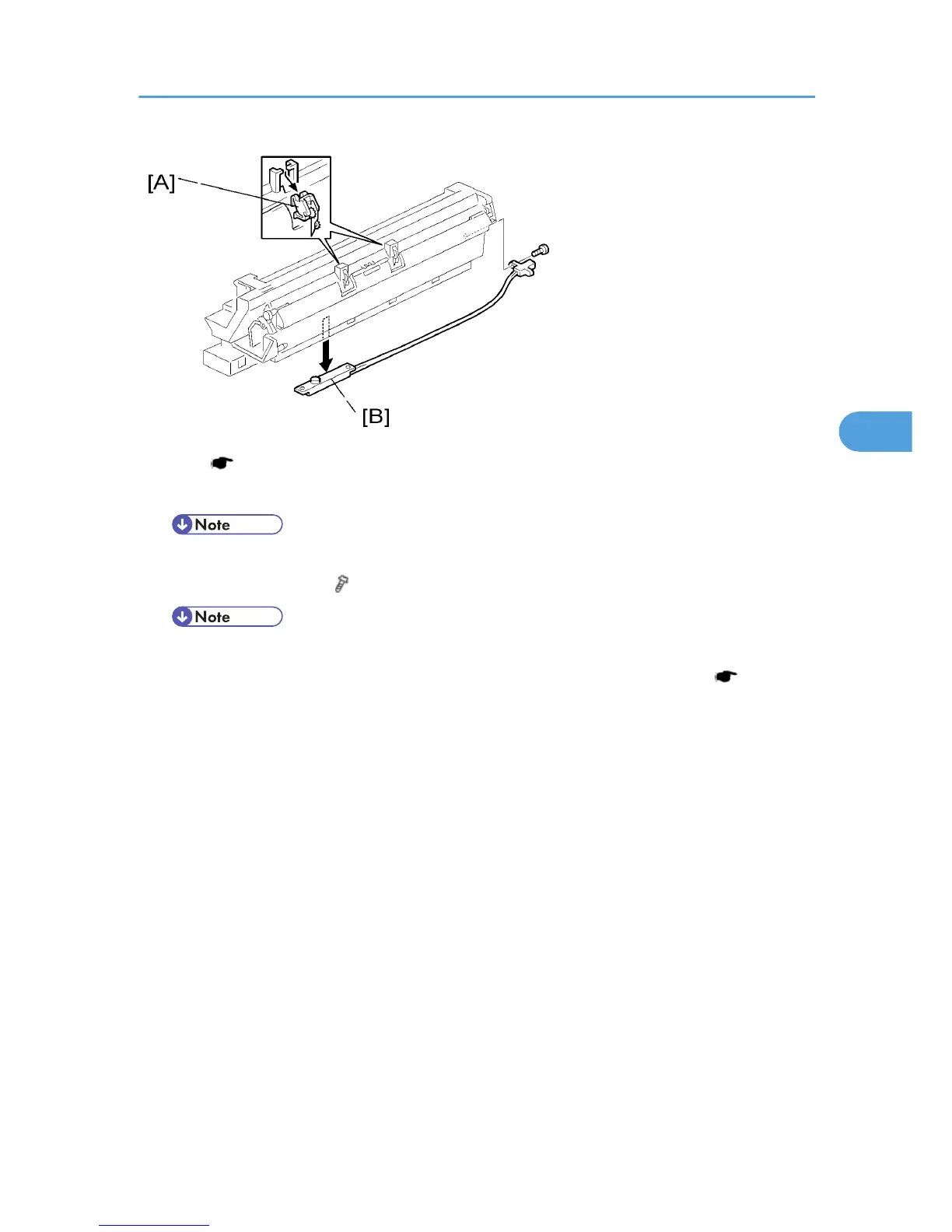

Pawl [A]
• Pull down the pawl and release the bottom end.
3.
Toner density sensor [B] (
x 1)
• The toner density sensor is taped to the bottom of the PCU. Pry it off with a regular screwdriver.
4. After
reinstalling the pick-off pawls or toner density sensor, adjust the image quality (
p.69 "After
Replacement or Adjustment").
PCU Section
65
