1. ADF or platen cover
2. Operation panel, top rear cover ( p.43 "Upper Covers").
3. Exposure glass ( p.48 "Exposure Glass/DF Exposure Glass ")

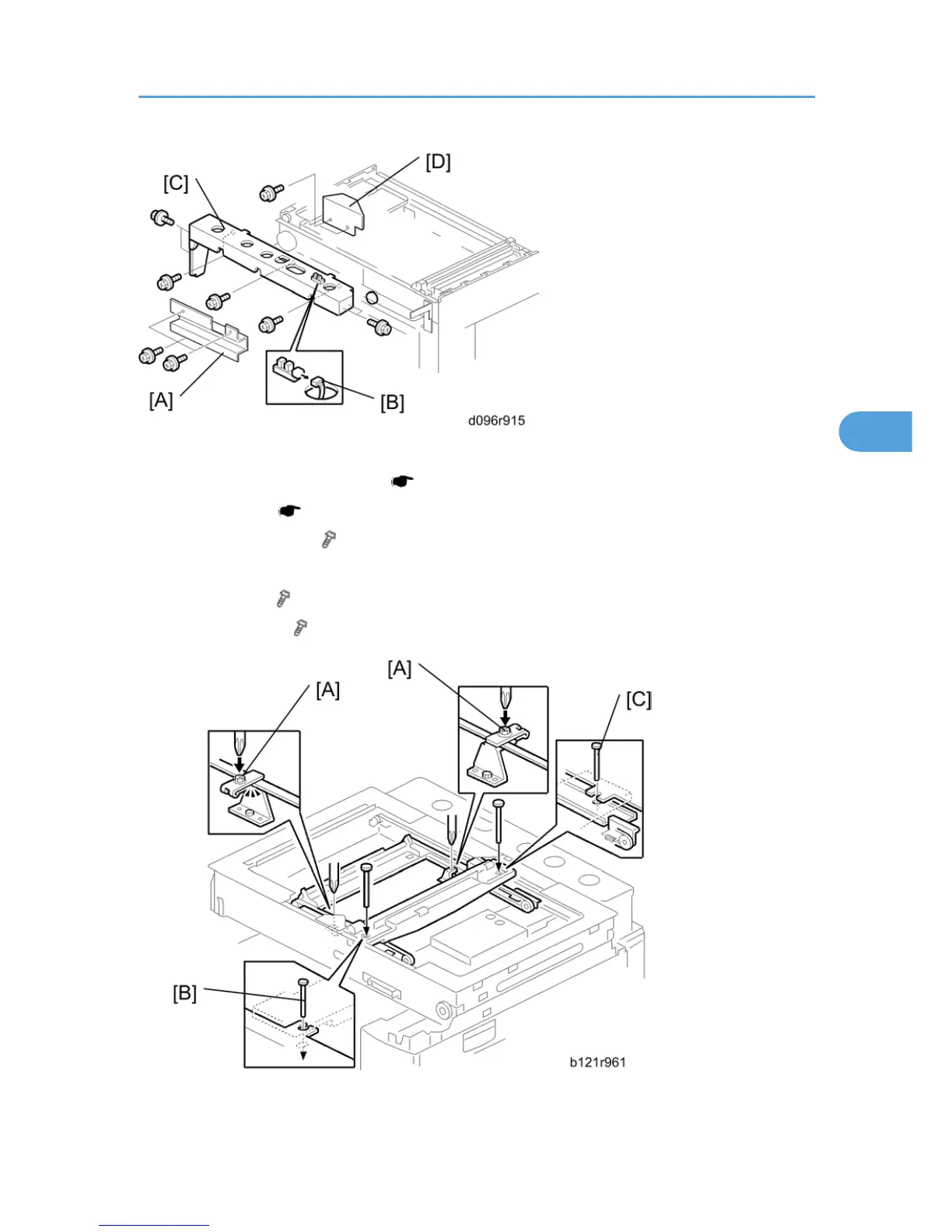

4. Controller bracket [A] ( x 3)
5. Disconnect the platen-cover-sensor connector [B].
6. Rear frame [C] ( x 7)
7. Scale bracket [D] ( x 2)
8. Loosen the 2 screws [A].
