140 1100 Series DAD and MWD User Manual
8Maintenance
12

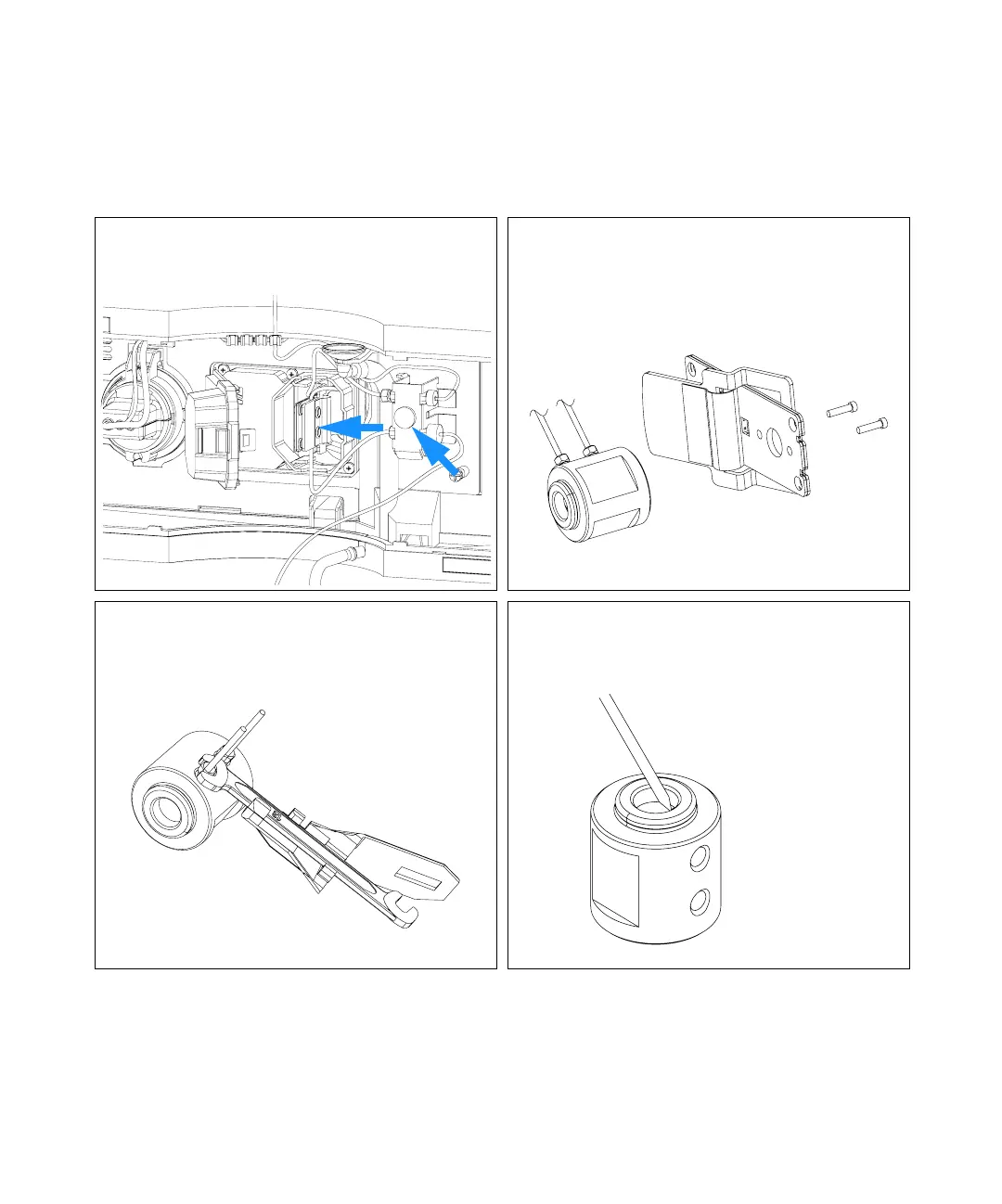

Disconnect the capillaries from the capillary holder and
remove the flow cell.
13 Unscrew the cell body from the holder.
14 Unscrew the capillaries from the flow cell. DO NOT use the
adapter at this time!
15 Using for example a toothpick, press on the plastic part
and slide the quartz body out of the cell housing.
