180 1100 Series DAD and MWD User Manual
10 Control Module Screens

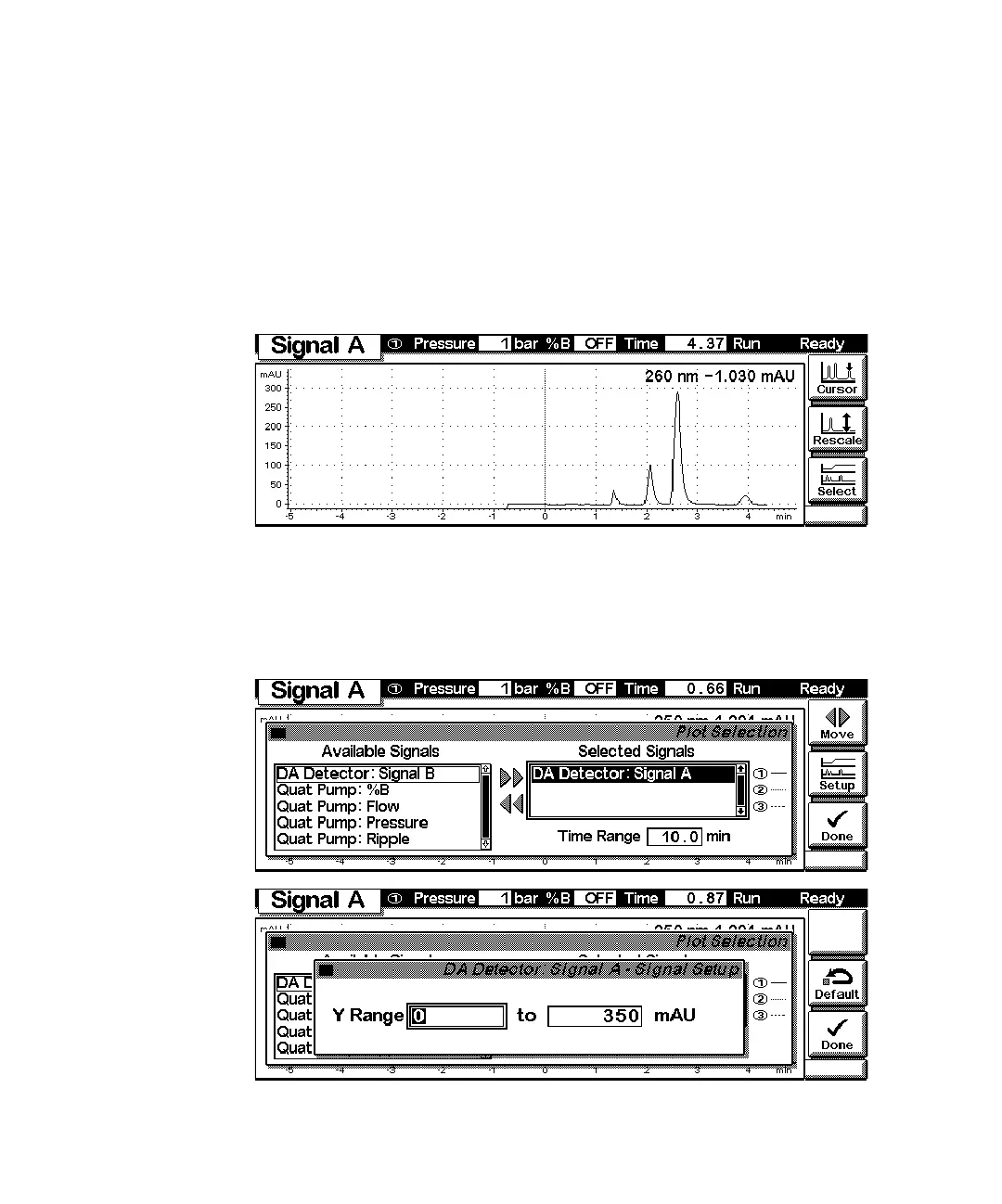

Signal plot
Press F6 key (Plot) to enter the plot screen (available also from the Analysis
and System screen). Here you can observe the online signal(s). To add
additional online signals (maximum 3), press F6 key (Select). If more than one
signal is configured (see next), use the 1-2-3 number key to switch between the
signals.
Press F6 key (Select). Here you can add additional online signals (maximum
are 3). Additional signals could be also pressure or temperature signals from
other modules. Use the Right/Left arrows to switch between Available and
Selected Signals. Use the F8 key (Move) to enter available signals into the box
for selected signals or vice versa. Press F6 key (Setup) to change the signal
setting.
