1100 Series DAD and MWD User Manual 181
Control Module Screens 10

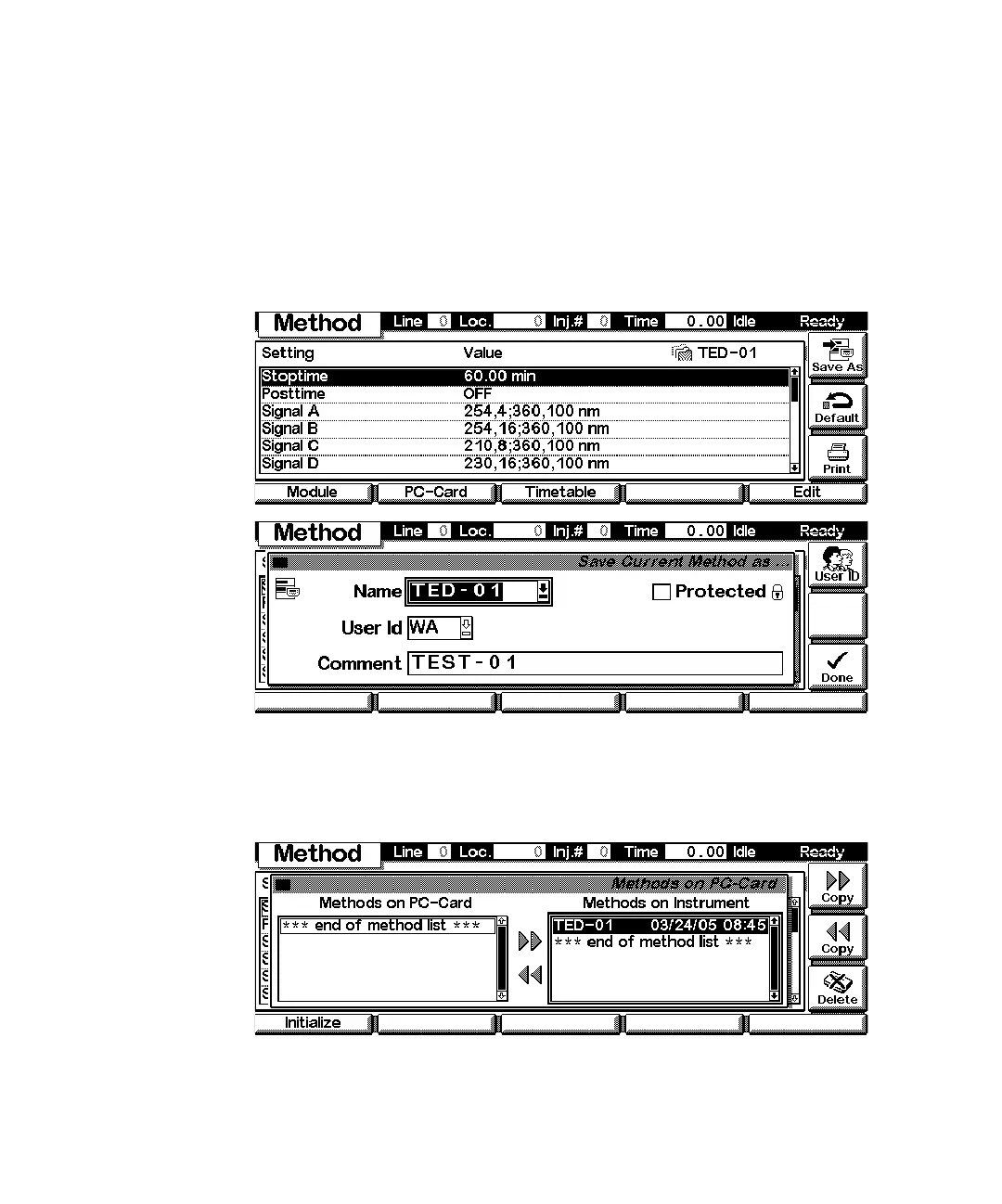

Method screens
Use ESC to return to the Analysis screen. Use the F3 key (Method) to view the
parameters in a method and F8 key (Save As) to save the method in the
module(s). The PC-Card key is only active when a PCMCIA card is inserted in
the control module.
Use F2 key (PC-Card) to save a method on a PCMCIA card. Use the Right/Left
arrows to switch between PC-Card and Instrument window. Use the UP/Down
arrows to select the method. Use the F7/F8 keys (Copy) to enter available
signals into the box for selected signals or vice versa.
