Agilent Technologies 5530 User Manual

Chapter 4 Angular Measurements
Angular Position Measurements
4-40 Measurements Reference Guide

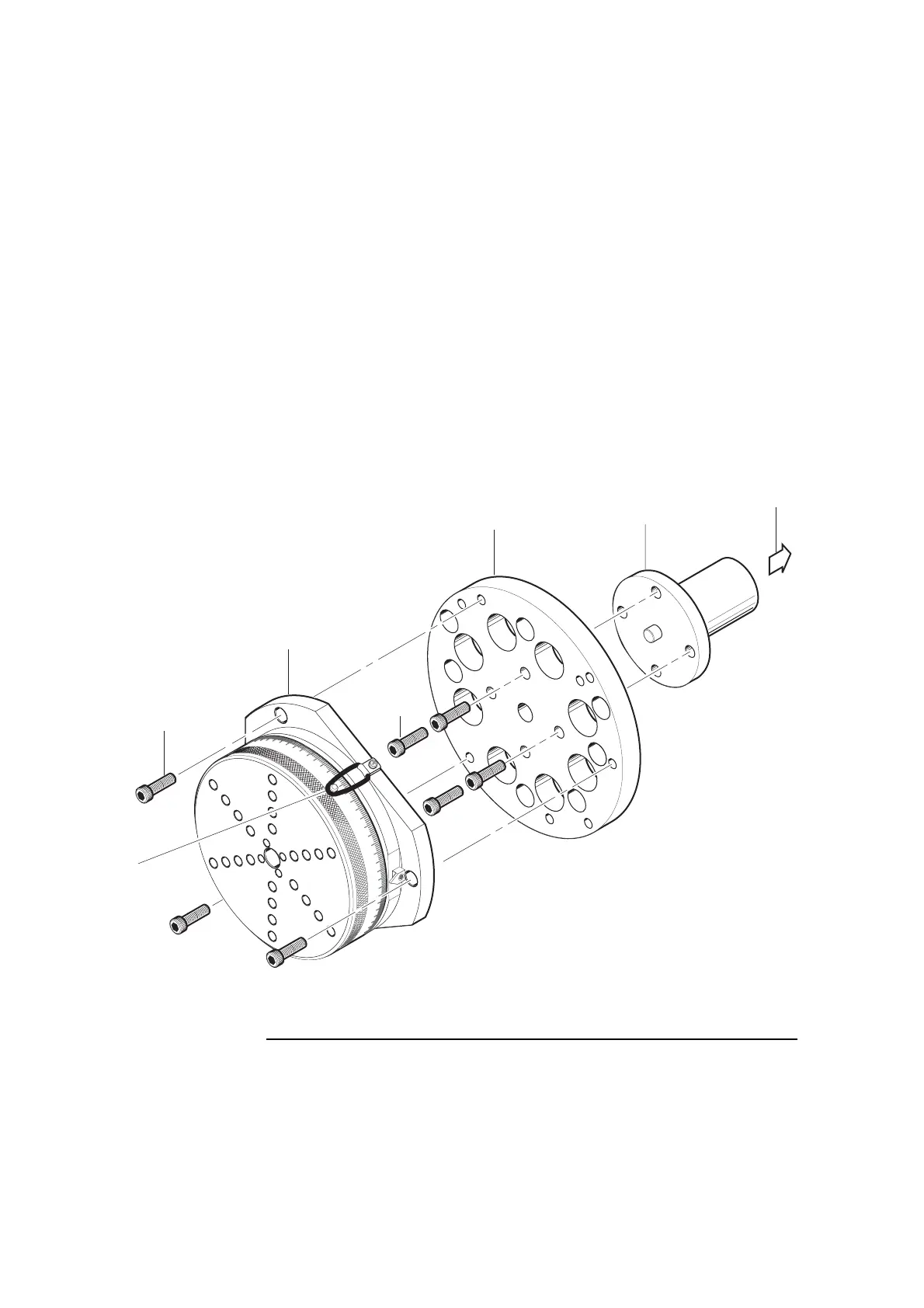

Figure 4-21. Mounting on a machining center
1
Flanged shaft
1a To machine rotary axis being calibrated
2 Adapter plate
3 Socket-head cap screw, 1/4 - 20 x 5/8 inch
4 Precision index table
5 Locking loop(s)
10
20
30
0
40
50
60
70
80
90
100
110
1
20
350
340
330
1
2
4
3
3
1 a
5
