Agilent Technologies 5530 User Manual

Chapter 4 Angular Measurements
Angular Position Measurements
4-44 Measurements Reference Guide
After mounting the moveable optic in the angular position measurements
fixture, mount the fixture on the precision index table.

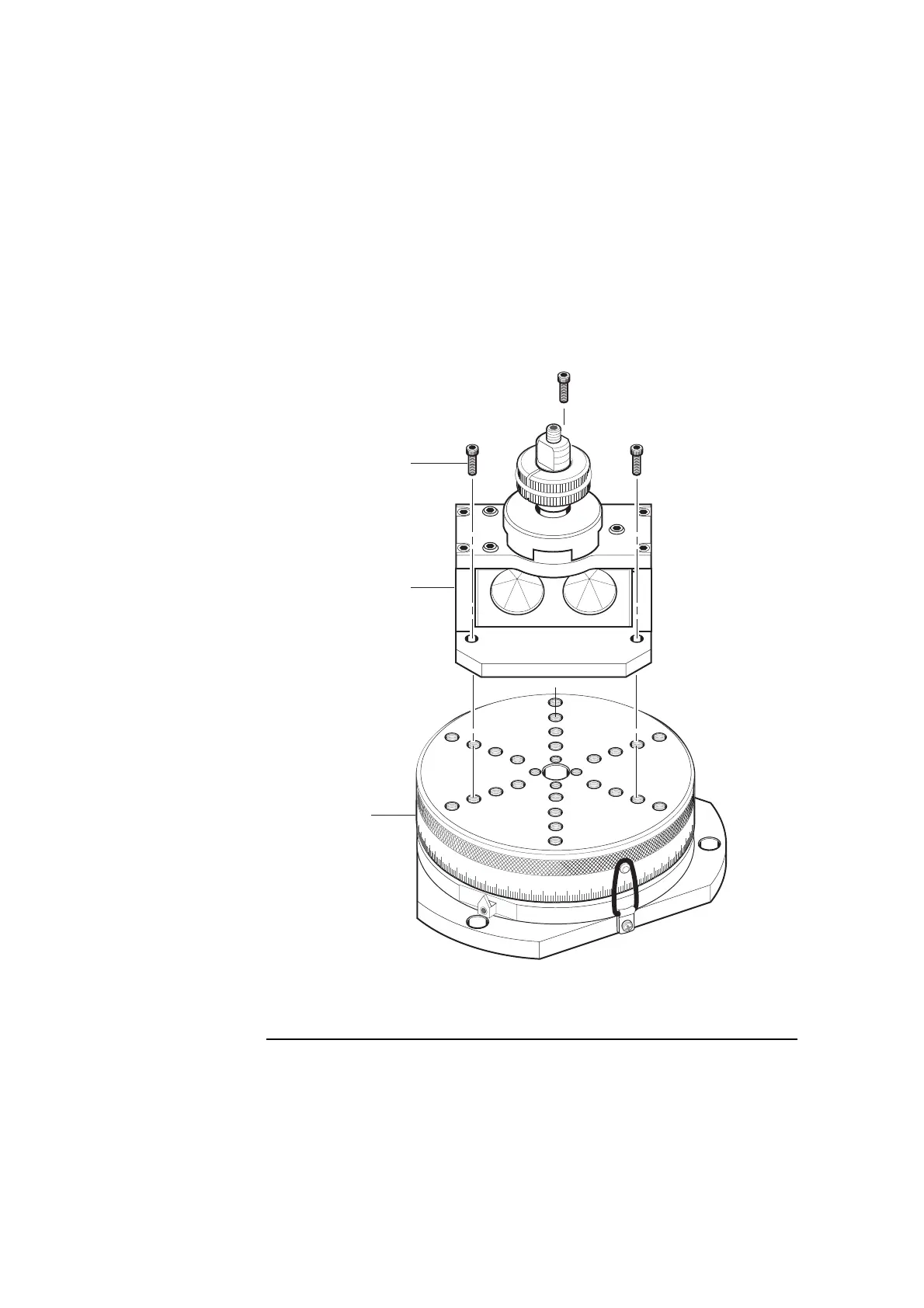

Figure 4-24. Mounting the measurement fixture on the precision index
table
1
Socket-head cap screw,
10-32 x 5/8-inch
2 Measurement fixture
3 Precision index table top
0
10
20
350
30
40
50
60
70
80
90
100
11
0
340
330
320
2
1
3
