Chapter 4 Angular Measurements
Angular Position Measurements
4-66 Measurements Reference Guide
8 Continue moving precision index table’s base to each angular position and
recording data until the machine has reached the last measurement
position.
NOTE If at any point the Reset Laser message flashes, the laser beam path has
been broken. Return the precision index table’s base to the last angular
position measured, then select Reset Position to reset the system.
After the last measurement is recorded, the Analyze Data: ANGULAR
screen is displayed (Figure 4-33).

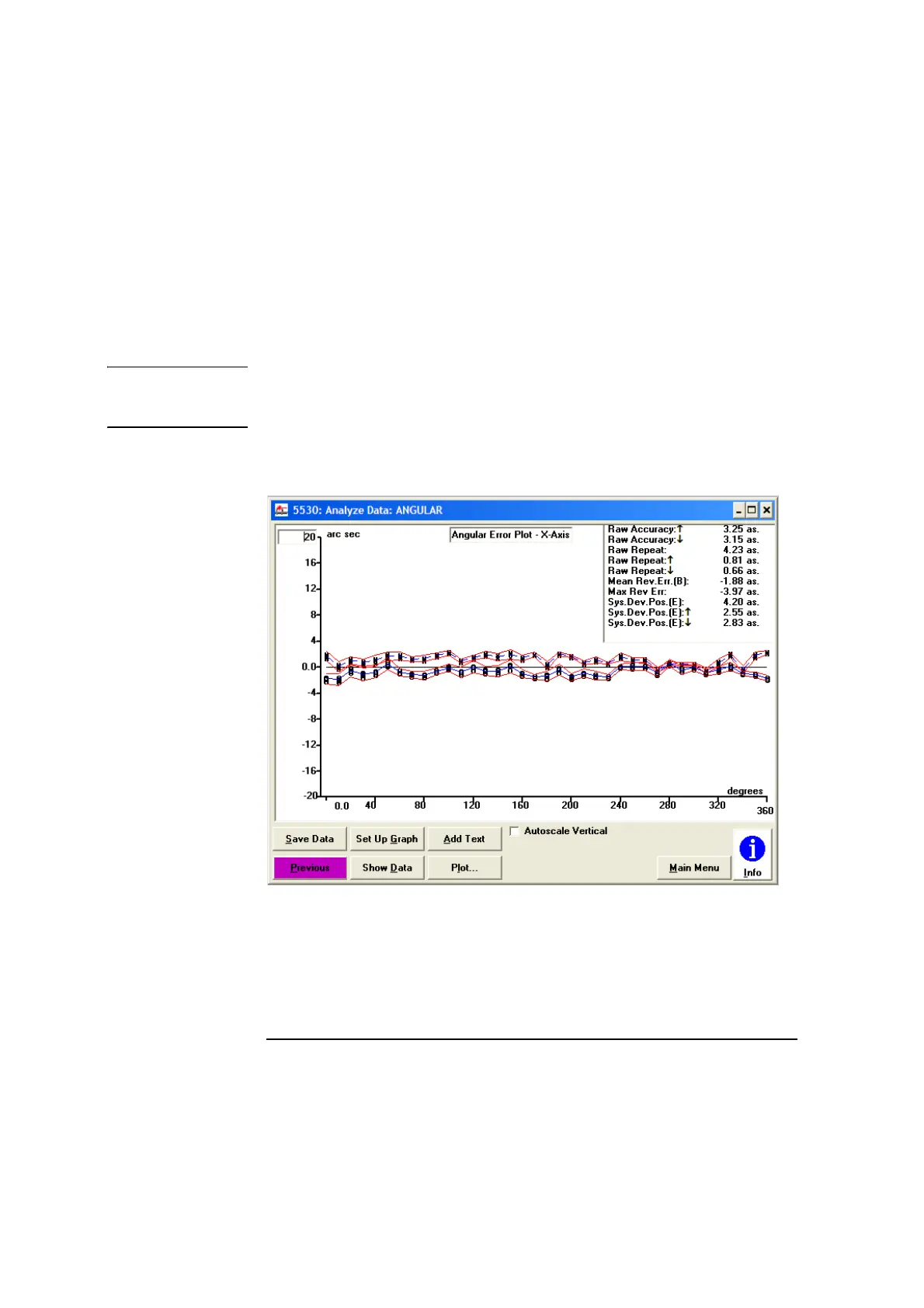

Figure 4-33. Analyze Data: ANGULAR screen
9 On the Analyze Data: ANGULAR screen, select Save Data to create or
update a data file with the measurement data.
