Chapter 2 Linear Measurements
Placing and Using the Sensors
Measurements Reference Guide 2-7

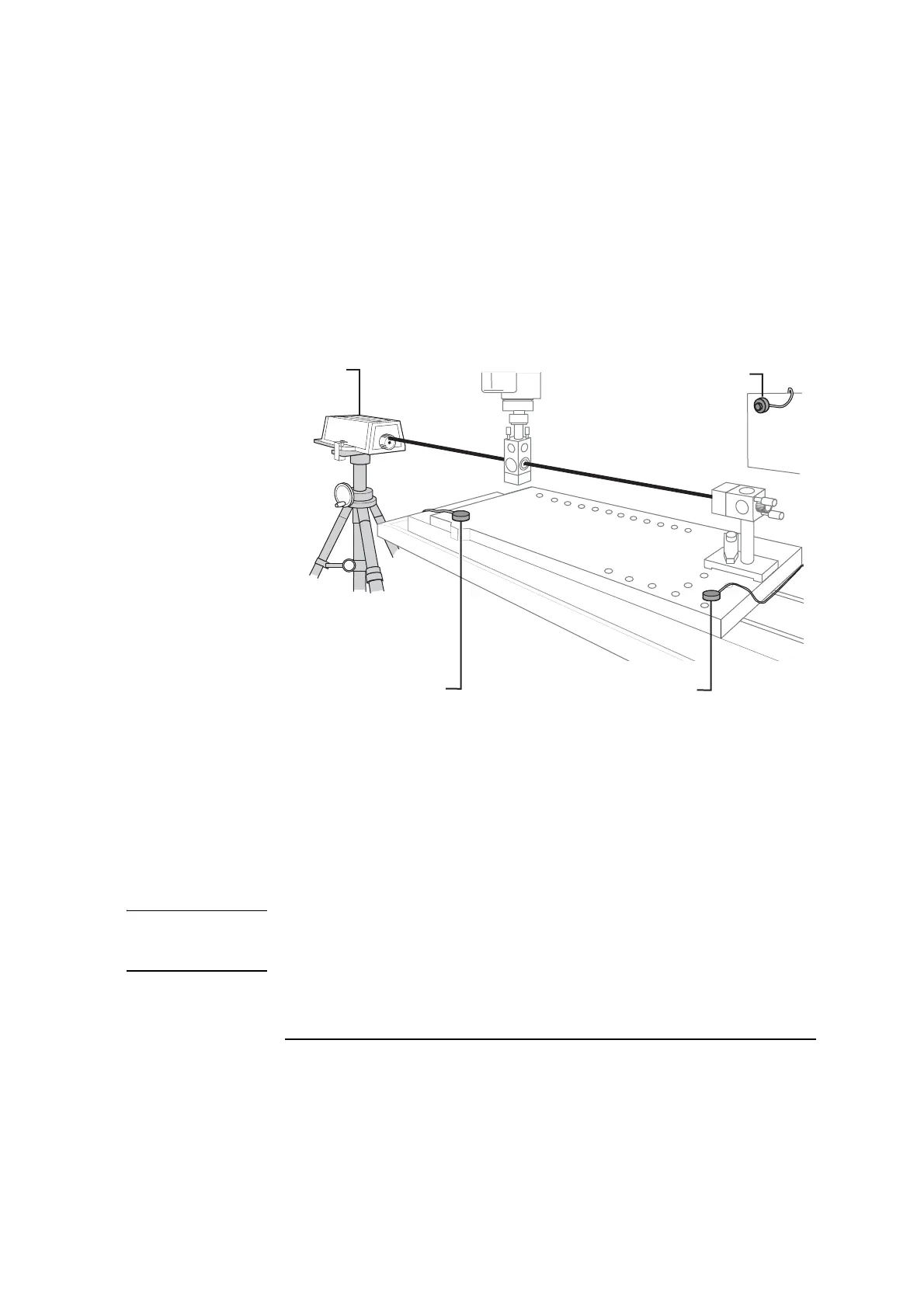

Figure 2-4. Air and material temperature sensors
Before using the following procedure, be sure the air and material
temperature sensors are connected to your computer through the USB
sensor hub. If they are not connected, refer to the Agilent 5530 Getting
Started Guide for instructions.
To automatically adjust for the effects of environmental conditions on the
laser reading, follow these steps:
CAUTION In placing the sensors on the machine, be sure the sensors and their
cables will not be a hazard to people, will not interfere with your
measurement, and will not be damaged by machine movement.
1
Laser head
2 Air Sensor
3 Material temperature
Sensor
* Sensor cables
connected to USB
Sensor Hub
3
1
2
3
*
*
*
To Next Page
