Chapter 4 Angular Measurements
Setting Up for a Pitch or Yaw Measurement
Measurements Reference Guide 4-5

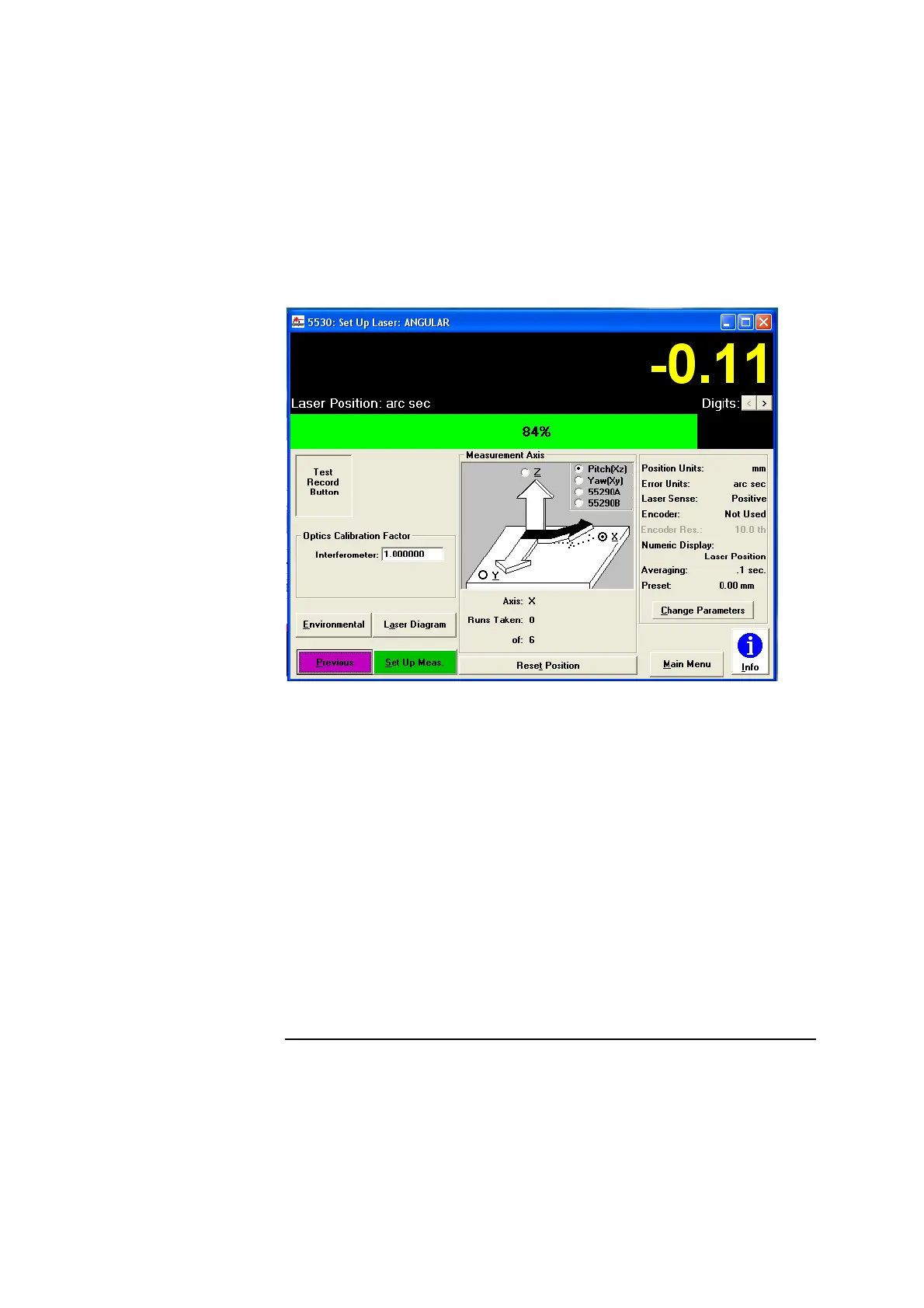

Figure 4-2. Set Up Laser: ANGULAR screen
6 Complete the fields on the Set Up Laser: ANGULAR screen.
For measurements described in this procedure, select Pitch or Yaw.
Instructions for 55290A and 55290B measurements are given in “Angular
Position Measurements” later in this chapter.
If necessary, use the online help.
To obtain the greatest accuracy possible, you must account for
environmental factors such as ambient temperature and humidity. If you
are not using sensors, follow steps 7 through 9 in “Setting Up for the
Measurement” in Chapter 2. If you are using sensors, follow the
instructions in “Placing and Using the Sensors” in Chapter 2.
You are now ready to mount and align the optics on the target machine.
