Routine Maintenance: General
Maintaining the auxiliary EPC module
Released: March 2004 6850 Series II GC User Information page 118 of 256

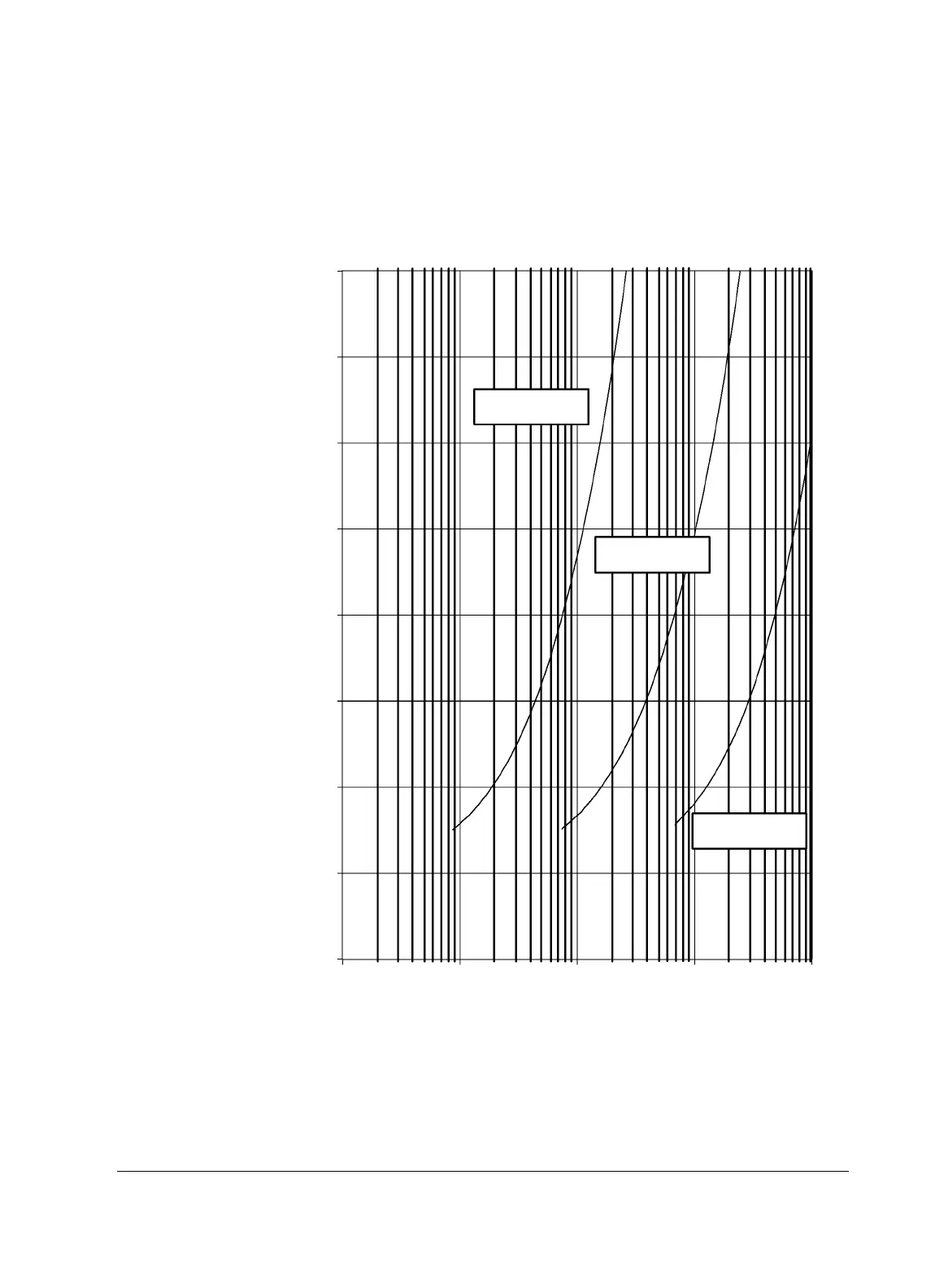

Figure 24. Pressure requirements for auxiliary EPC flow restrictors
with hydrogen
19234-60660
(blue dot)
19231-60770
(red dot)
19231-60610
(brown dot)
10
0
80
20
30
40
50
60
70
0.1 100.0 1000.01.0 10.0
Pressure requirements for auxiliary EPC flow restrictors
with hydogen
(ambient conditions: 25°C, 14.7 psia)
Gas flow in mL/min
Minimum
source
pressure
(psig)
