124 Operation Manual

6 General Maintenance

To Clean the Ion Source

3 If the contamination is serious, such as an oil backflow into

the analyzer, seriously consider replacing the contaminated

parts.

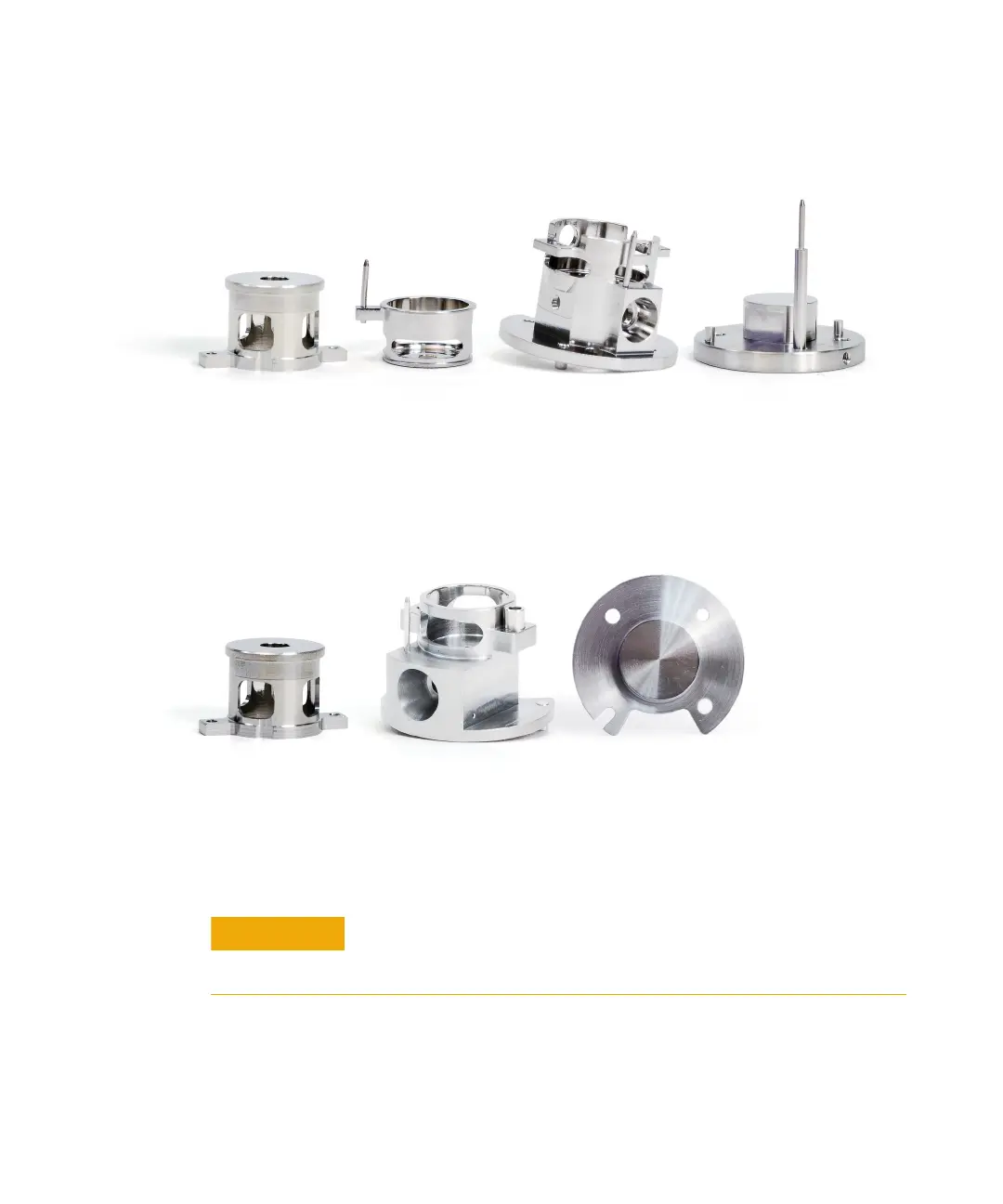

Figure 33 Extractor EI Source parts to be cleaned

RepellerExtractor lens

Source bodyIon focus lens

Figure 34 CI Source parts to be cleaned

Repeller

Source bodyIon focus lens

CAUTION

The filaments, source heater assembly, and insulators cannot be

cleaned ultrasonically. Replace these components if major

contamination occurs.
